My Dell Optiplex 7010 has an i5 2400 and i intend to place an order for a Zotac GTX 710 2GB video card. Am not sure if the graphics card is low profile and will work with my PC. My dell Optiplex is the MicroTower version and from what i have read online, the PSU is upgradeable for higher end graphics card, but i just want a graphics card that is plug and play and will fit into the PCIe slot. Before i make an order for this graphics card i just wanna make sure it is what i have described above or does it require some separate connection to the motherboard?
Thanks for your help
Asked
Active
Viewed 284 times
1
Dong Li
- 271
- 1
- 5
- 20
1 Answers
1
It will depend on precisely which Optiplex 7010 you have. The card will fit the MT, DT & SFF versions, but not the USFF. See Dell's tech guide on the models

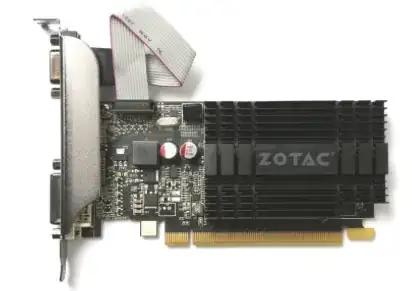

The Zotac is a small card compared to many & in fact is slightly shorter than the optional card supplied for that machine at the time, the AMD HD 7570, whilst similar in other respects.
Aside from a driver install, the card is physically 'plug & play', no additional connections required. It takes power directly from the PCI slot.
Zotac
AMD
Tetsujin
- 50,917
