I was trying to build a small experimental server

  1. I have set up windows to use internal static IP 192.168.1.10

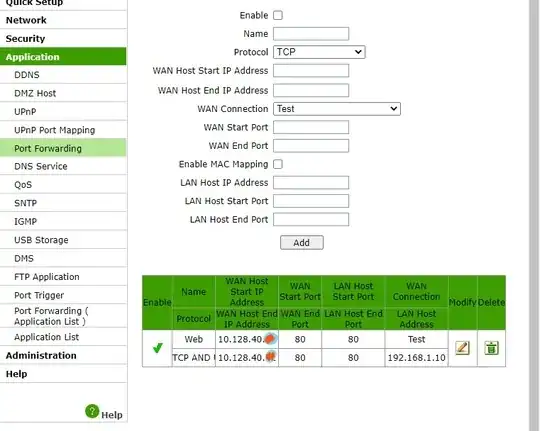

  2. I have forwarded the port number from my router to redirect all requests on port 80 to my PC

enter image description here

When I try to access 192.168.1.10 the web server replies to the request but it no replies when I try to access it through the WAN-IP NB : I've disabled the firewall for both my PC & Router

Albin
  • 11,950
User
  • 1

1 Answers1

1

You router's WAN IP is 10.128.40.X. Unfortunately 10.0.0.0/8 ("10.xxx.xxx.xxx") is a private IP range and therefore your IP belongs to your ISPs carrier-grade NAT (CGN) - it's not a public IP.

You can check this yourself by testing if your router's WAN IP matches your public IP. To do this you can use a website e.g. whatsmyip.com to find your public IP address. If they don't match you are behind a carrier-grade NAT. If so, you might be able to access your server via IPv6, that is assuming you get one assigned by your ISP and your router supports it.

If IPv6 does not work and you still want a public IP, several workarounds exist. Easiest would be to ask your ISP to provide you with a public IP. Or you can use a VPN service or proxy that provides you with a public IP (or use a remote tool):

If you don't have a public IP address you will need to use a proxy or a VPN service (e.g. use AirVPN and setup a port forward). There is no way around that for "direct access" over the internet if you are on CGN. If you don't need "direct access" you could login into a local machine on your network via a remote tool (e.g. Anydesk) and access your Server from there.

see source for further details
