Wi-Fi doesn't have a valid IP configuration error

Question

I am using HP ab522tx laptop. Windows 10 auto downloaded some updates like 10-15 days back. It always used to give me a reminder to install the same but I used to just put the laptop on sleep mode after using it. Today suddenly it hung on me for the first time.

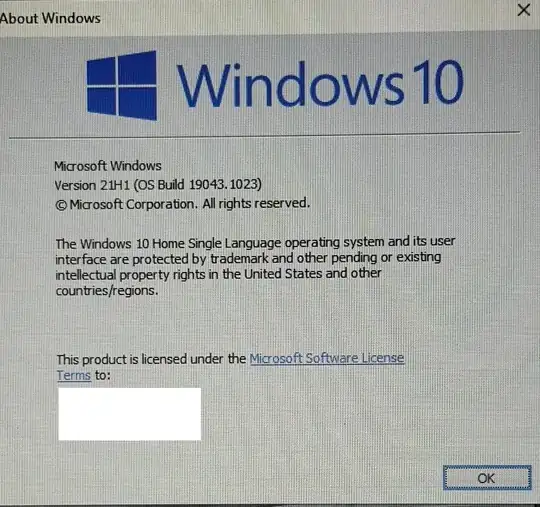

I long pressed the power key to turn it off and then switched it on. The option to install the updates was there when it turned on. I selected install and restart and then it restarted without even showing that they same were installed. Anyways the updates to be installed notification was gone from the start button after it restarted. Now the version of the Windows which is installed is Version 21H1 (OS Build 19043.1023)

I don't know which was the build which was previously installed so I can't say whether this update was correctly installed or not.

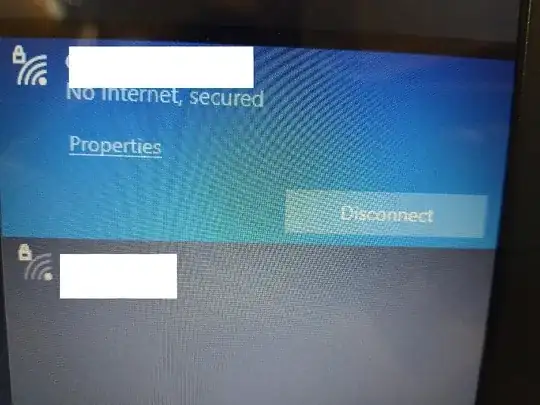

Now everything works fine but to every Wi-Fi that I connect to, shows the no internet error:

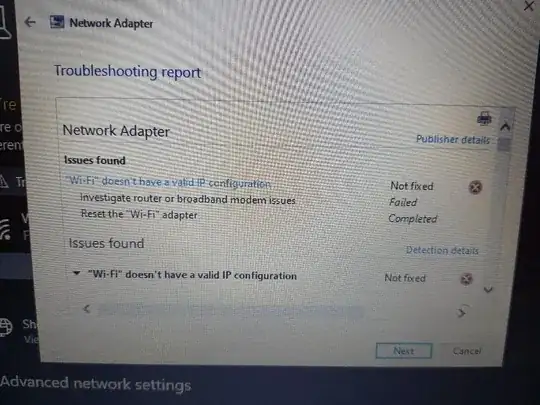

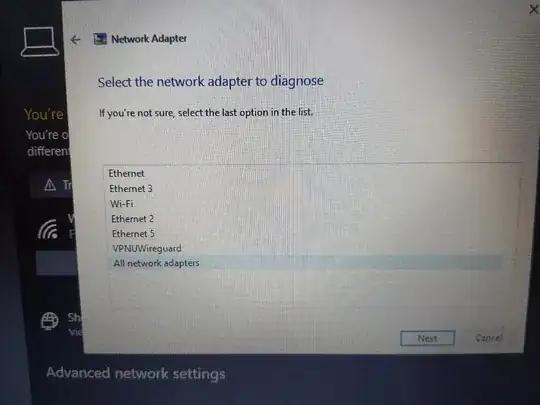

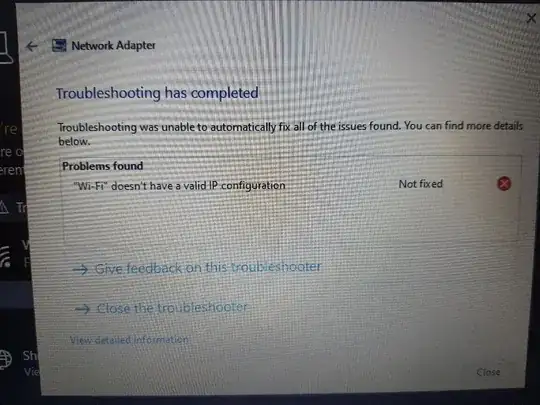

Did some basic troubleshooting and it lead me to this error: Wi-Fi doesn't have a valid IP configuration

Googled, found many articles and websites. Followed steps mentioned on this one https://windowsreport.com/wi-fi-valid-ip-configuration-windows-10/

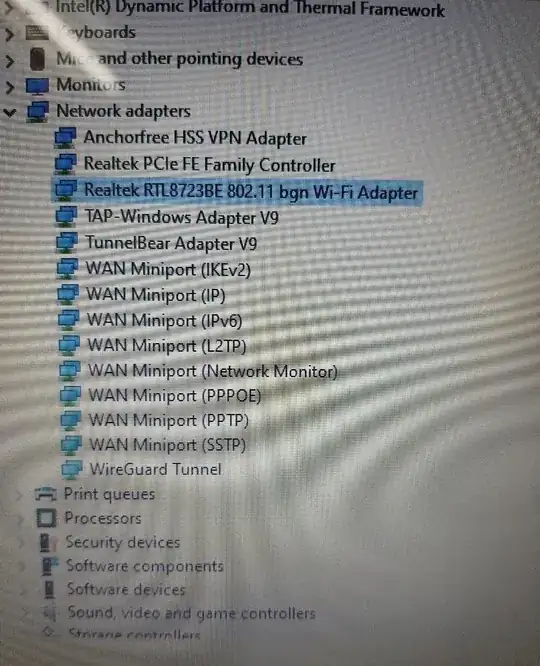

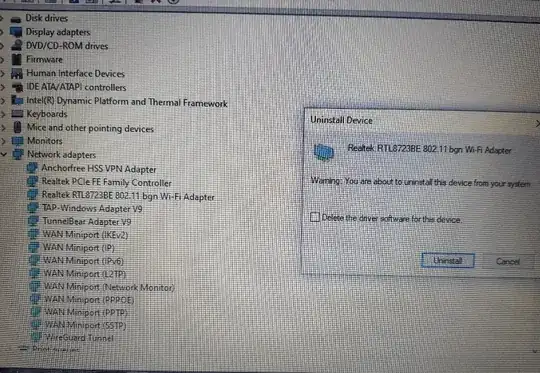

Uninstalled driver, restarted and it was auto installed again. Same issue

Reset TCP/IP. Done. Same issue. It shows this

Change the wireless SSID and password

Not done but tried connecting the laptop to other Wi-Fi connections. Same result.

Set the channel width to Auto

Done. Same result.

Set your IP address manually

Didn't do. As I don't know what values to fill in.

Remove your antivirus software

Using Windows Defender only. It is not messing up with the Wi-Fi. Disabled just to check but same result.

7-10. Didn't follow those points as I somehow feel that the issue is not with those.

` Edit-

Please check all photos, I think the problem is somewhere in them. I am just not able to find it.

Connected a wifi adapter to the laptop https://www.amazon.in/TP-Link-TL-WN725N-150Mbps-Wireless-Adapter/dp/B008IFXQFU/ref=mp_s_a_1_2?dchild=1&keywords=tp+link+wifi+adapter&qid=1626514066&sr=8-2 but same result

https://i.sstatic.net/iyWf6.jpg

https://i.sstatic.net/eY9YW.jpg

https://i.sstatic.net/EluuI.jpg

https://i.sstatic.net/G9x3u.jpg

https://i.sstatic.net/6vn3j.jpg

https://i.sstatic.net/xDhje.jpg

Adapter list minus the wifi adapter which was connected, the connected adapter was auto renamed to wi-fi 2

https://i.sstatic.net/5s4Uq.jpg

Started again from scratch. Reference video, same as the link followed earlier https://windowsreport.com/wi-fi-valid-ip-configuration-windows-10/

https://m.youtube.com/watch?v=VgwCcKpv38E

Step 1

netsh winsock reset works fine

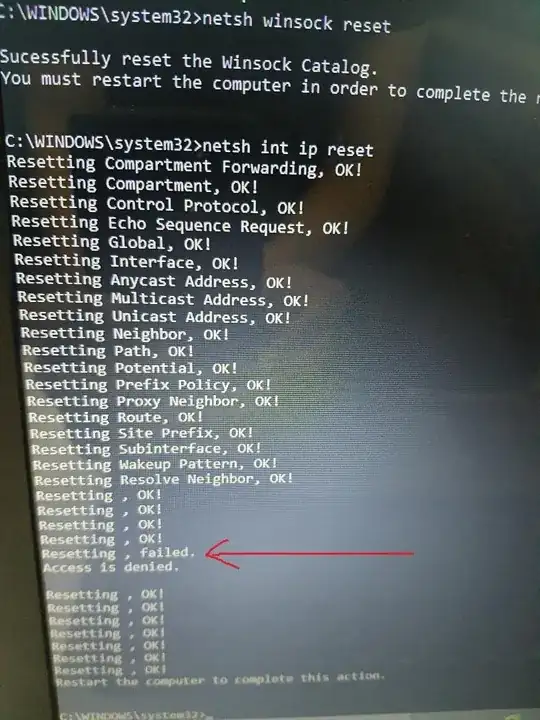

netsh int ip reset gives that error as shown in the first post but it gives that error in this video also though mine is more with a little more settings or something.

I restarted but it didn't work. So, tried the next commands

ipconfig /release

ipconfig /flushds

ipconfig /renew

And I get this error No operation can be performed on ethernet etc. while it has its media disconnected (What is this and how to resolve this?)

https://i.sstatic.net/1v96H.jpg

https://i.sstatic.net/6KCfH.jpg

Zoomed in

https://i.sstatic.net/VKGeQ.jpg

Found this https://answers.microsoft.com/en-us/windows/forum/all/i-get-an-error-media-disconnected-when-i-try-to/e0541113-cc92-40e6-84fa-1ebb8ac0fd24 but I wasn't able to fix it with the steps mentioned in the suggested answer. These are the suggested commands

netsh winsock reset

netsh winsock reset catalog
