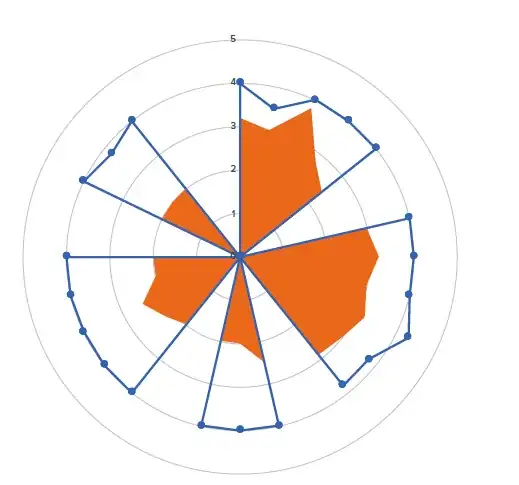

I'm struggling to find a way to just fill one shape in a radar chart. An example of what I would like to have is in the image.

  • I tried to start from a simple radar chart and then filling the shape --> I can't find the option;

  • I tried to start from a filled radar chart, but I don't know how to obtain the result in the image;

Thank you.

Filled Radar

cybernetic.nomad
  • 5,951
  • 15
  • 26
spartan15
  • 33

1 Answers1

1

Is there a series data for the filled shape in Radar Chart?

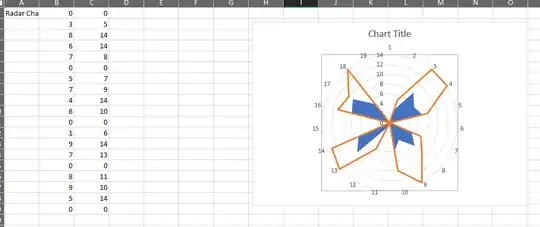

If not, please add an auxiliary column to draw the line for this filled shape.

Then create a Radar Chart includes the series of auxiliary column.

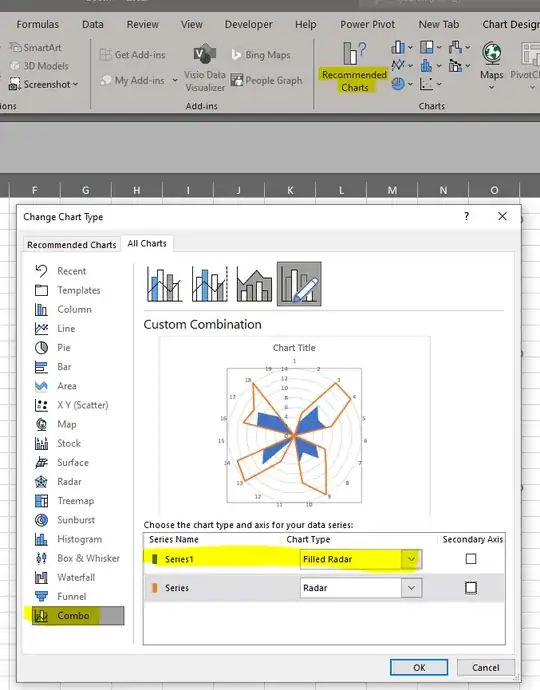

And then select this chart > Recommended Chart > All Charts tab > Combo > Choose Filled Radar for the series of auxiliary column. Choose Radar for another series > OK.

enter image description here

enter image description here

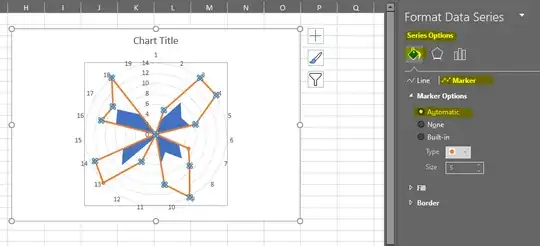

If you need to show markers you may add it.

enter image description here

Emily
  • 4,035
