I'd like to connect a Windows 10 computer to two separate networks simultaneously using two different routers, one with its wifi (internet-connected) and another with ethernet (no internet).

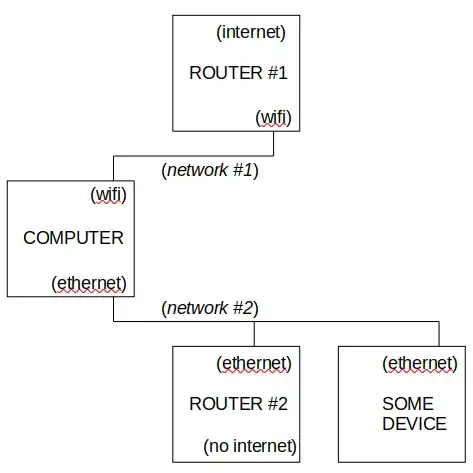

Is there a way to make it work like that? As further clarification, the picture below shows what I had in mind.

enter image description here

plu
  • 627

2 Answers2

0

Got a working solution, based on the info combined from this source and two SE posts (Post 1, Post 2).

Basically, to have two simultaneous networks, I connected the devices as shown in the original post, then manually set the "Automatic Metric" to a lower number for a higher priority. In this case, the Wifi was assigned a "2" and the Ethernet was assigned a "3".

To do so, I did the following (mostly reproduced from source):

  1. Press Windows + R
  2. Type in Control.exe
  3. In Control Panel, double-click Network & Internet
  4. Click on Status.
  5. Click on Change Adapter options
  6. Right-click the wireless adapter
  7. Select Internet Protocol Version 4 (TCP/IPv4)
  8. Click Properties
  9. Switch to the General tab
  10. Click Advanced
  11. Go to the IP Settings tab
  12. Click to clear the Automatic metric checkbox
  13. In the Interface Metric field, enter 2.
  14. Then repeat the above with the wired ethernet adapter, and in its Interface Metric field, enter 3.
plu
  • 627
0

Dell bios: Enter bios settings > connection > wireless radio control > control WLAN radio to “OFF”. Apply changes > Exit

user1727825
  • 1
