Hello I am new to networking and I am a bit confused. I need to subnet this with VLSM, I think I need 6 subnets if I'm not mistaken. I don't really know how to determine all the hosts needed in each subnet. My network address is 192.168.5.0/24. I hope someone can help me.

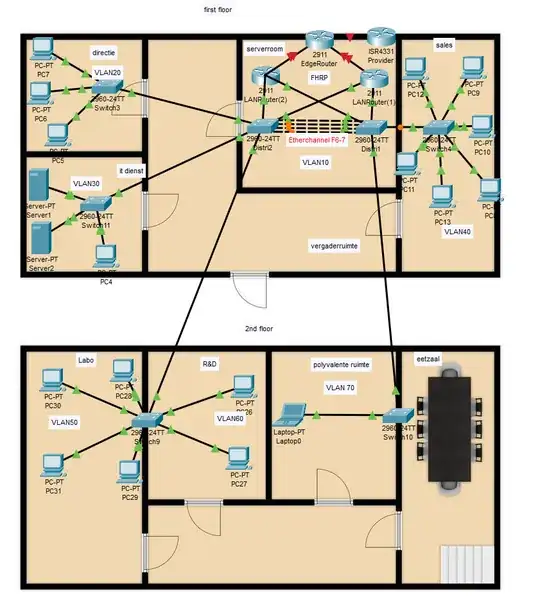

This is my project in packet tracer This is my project in packet tracer

Service Desk Bunny
  • 2,898
GuestUser
  • 1

1 Answers1

0

It's pretty easy to determine the hosts needed in each subnet. Count the number of computers in each VLAN and add one or three addresses for routers (depending on redundancy requirements with CARP/HSRP).

  • VLAN 20 is 3 hosts + 1/3 router addresses
  • VLAN 30 is 3 hosts + 1/3 router addresses
  • VLAN 40 is 6 hosts + 1/3 router addresses
  • etc.
mtak
  • 17,262
