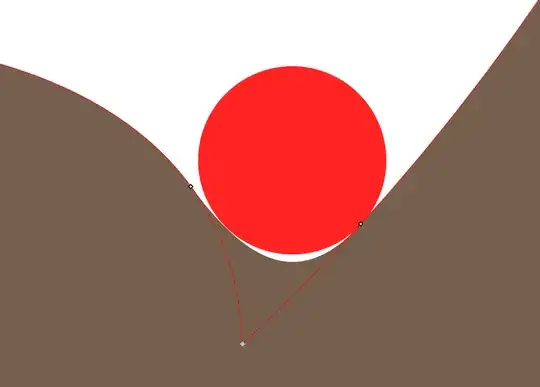

I tried to use the path effect 'Corners (Fillet/Chamfer)' to round the corners of a shape. Unfortunately, this is not working on all corners. Some do not round the exact radius that is set. I made a circle object with the same radius and there is a gap.

Radius of fillet not correct:
Radius of fillet not correct

Markus Meyer
  • 1,910
Reinout Depoorter
  • 31
  • 1
  • 2

1 Answers1

2

I would suggest you try using the "Force arc" method in the Corners (Fillet/Chamfer) LPE effects panel, rather than the default "Auto" setting.

Here's an example

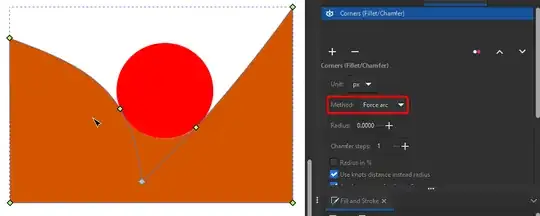

enter image description here

With the "Force arc" setting selected, swap to Edit Paths by Nodes tool N and when you click drag the corner controls, the rounded corner will be constrained to a proper arc.

Billy Kerr
