I've decided to have some retro feeling and ordered a motherboard beeper.
The one like this:

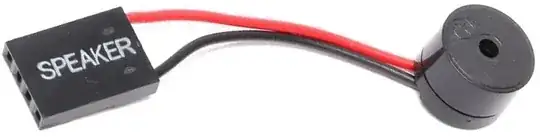

PC Speaker

I've connected the red wire to +5v pin on motherboard and the other one to a pin labeled as "speaker". It's working fine on bios startup and does one single beep.

Now the question is.
If I try using system beeper in windows, e.g. with:

powershell.exe [console]::beep(500,600)

The sound goes either through desktop speakers or headphones. I want the sound to come out of PC speaker / beeper, whatever it's called, the one connected to motherboard pins.

Specs:
Name Value
Edition Windows 10 Pro
Version 21H1
OS build 19043.928
Experience Windows Feature Experience Pack 120.2212.3530.0
MotherBoard Asus Maximus IV Extreme-Z
DiMithras
  • 268
  • 1
  • 8

1 Answers1

0

Solution found.
As stated in the comments, this answer did the trick, BEEPX works. It changes the beep.sys driver with a working one. And signed by Microsoft.

Links to the driver:
x86 | x64

Just in case the website is down, here are the fallback links on Gdrive:
x86 | x64

By publishing those fallback links I do not violate the license as stated inside:

License

This Application and Sourcecode may be distributed freely.
The Sourcecode is Licensed in Terms of the GNU GPL v3.
See: http://www.gnu.org/licenses/gpl.html

Hashsums:

beepx.zip (x86) beepx64.zip (x64)
Size: 71803 bytes (70 KiB) 26868 bytes (26 KiB)
CRC32: 4766B287 6DB259A4
CRC64: 5158EE3F09D4E4BE 2B08DC7BCDB37D51
SHA256: A7F9ED13D1D165482BA9E8A78CD02A48FD8BEC53A4886ECE8B24AD02F60131F8 C36E4E4B34FB99C90A66C115140C59A75980CEACC01F1542421B226A191D53EE
SHA1: 3681907BA22FCB107839CFB17A72CE3B84C96FAA BA6548D98A07634FB9D23BDEC2989BF6FB3B0558
BLAKE2sp: 7567A439B1F789E441D33CD69104F5AC49B621D055332148C8DF924316E66DEB 45B69757948A15C29EAE618EB335581539BFAC2F83B64E610969237EBF4FE0DF
