I want to upgrade my computer to the new Sandy Bridge CPU's, which features integrated graphics.

However, you have to choose between two types of chipsets: H67 or P67.

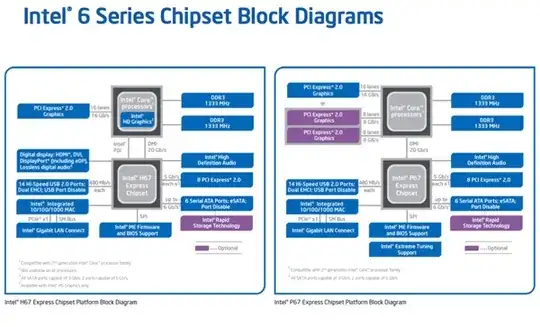

alt text

Now since I already own a GTX 460, so is there any added value to using the integrated graphics? Or are there any other good reasons for picking one model over the other?

Would it perhaps let me disable my GPU when I don't need it's additional power (like in notebooks) or would the integrated graphics simply allow me to add another screen?

Note: this will be for a desktop.

Ivo Flipse
  • 24,894

5 Answers5

7

No, just disable it. Integrated graphics will not compare to the external GPU you have, and it won't save power or allow you to add an extra screen. It's one or the other, not both at the same time.

Integrated graphics will be choppy and slow. Essentially a downgrade.

3

The integrated graphics will have its own connector, so if you wanted to save power by powering down the GPU (somehow?) you'd need to physically change the connectors. A KVM switch would also do the job.

The extra connector could be used to run another screen, but your GTX 460 can already power two. It can however be useful for diagnosing problems with your graphics card.

You should make the choice between the chipsets on another factor.

RJFalconer
  • 10,369
3

At the moment it's pretty simple (sadly):

  • with H67 you’re able to use the CPU’s integrated GPU
  • with P67 you can’t. But only with this chipset you have the full overclocking potential
  • it seems you’ll need to buy an P67 in order to use SLI/CrossFire
  • There's a new chipset coming: Z68 which combines all positive effects of H67/P67.

So if you can wait, take the Z68 board.

weeheavy
  • 581
2

That is like asking should I get a Hyundai Accent when I already own a Ferrari. The 460 is pretty good. Intel's Sandy Bridge is trying to compete with the lowly integrated GPU that comes with most motherboards.A serious gamer will still want a dedicated GPU on the new Sandy bridge systems.

Update:

if the question is h67 vs p67 chipset based boards:

1. P67 is the "better" chipset because it has overclocking support and native support for both Crossfire and SLI.

2. H67 chipsets allow you to use the processor's integrated graphics(P67 based chipsets do not!).

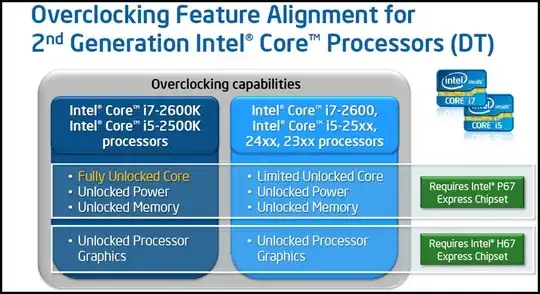

image from hardwarecanucks.com

image source

H67 based boards are cheaper, but similarly priced P67 based boards are available. See specifications for Gigabyte H67 based motherboard and P67 based motherboard

But, before deciding you will have to take into account the features of the actual motherboard in question.

Further Reading: http://www.hardwarecanucks.com/forum/hardware-canucks-reviews/39153-intel-sandy-bridge-core-i5-2500k-core-i7-2600k-processors-review-4.html

Sources: http://en.wikipedia.org/wiki/List_of_Intel_chipsets

abel
  • 737
2

Now since I already own a GTX 460, so is there any added value to using the integrated graphics?

Yes, if you ever have graphics problems with your dedicated card, you can use the integrated graphics to get you up and running so you can diagnose the problem and still use the PC until a you get it solved or the new card arrives.

Moab
  • 58,769
