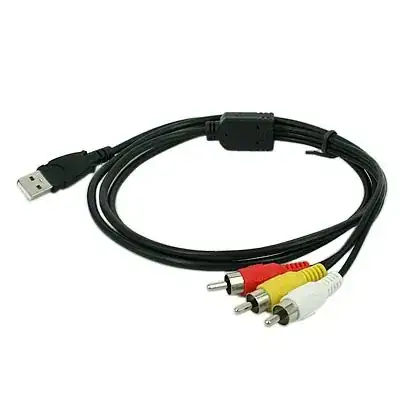

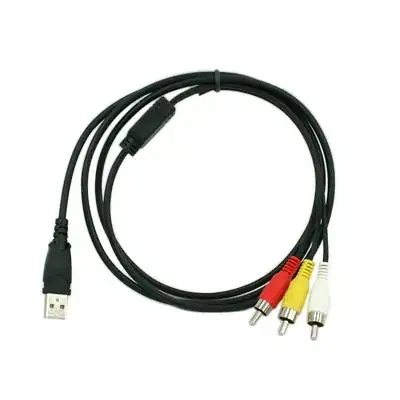

Does anyone know what these RCA-to-USB cables are/do? There doesn’t seem to be any electronics in the cable like an EasyCap, so I can only assume that the RCA connectors are directly connected to the USB pins. I suppose that it could be used for A/V capture, assuming of course that there were some kind of driver/software, but then again, I doubt that the computer would pick it up as a device of any kind when you connect it since it would be directly connected to a TV/VCR/etc. Looking around, I see mentions of connecting it to “RCA cameras”, but that does not clear things up at all.

What are they?

enter image description here enter image description here

Sathyajith Bhat
  • 62,374
Synetech
  • 69,547

3 Answers3

6

I did some digging and found some useful information in a review on Amazon. As you suspected, there is no analog/digital conversion hardware in the cable, the RCA lines are tied directly to the USB pins. The reviewer says that he disassembled a cable and found this pinout:

  • USB Ground and USB Data- -> Ground of all three RCA connectors
  • USB Data+ -> Left audio and video composite pins
  • USB Vcc -> Right audio pin

From that pinout, it is impossible for this cable to carry either a valid composite A/V signal (because the left audio and video composite pins are tied together), or a valid USB signal (because Data- and Ground are tied together). This cable is an elaborate—and surprisingly widespread—scam.

Tim
  • 1,613
1

According to the product description at Amazon, they are RCA-to-USB cables...

They plug into a camcorder via RCA, to display images/sound on certain "USB-enabled TVs and PCs."

Flimzy
  • 4,465
-1

hook a rca camera to the usb cable and you are now able to use any camera as a video conference room camera.

No driver needed. Most conference calls are able to be recorded thru the website you are using for the call.

You are correct! It will not work for recording, unless you are using some other program that allows you to delicate this camera for use inside the program you are using.

But there are many other usb cables that do cam with drivers to install for surveillance.

Russ
  • 1
