Software to draw/edit the Syntax of SQL statements

Question

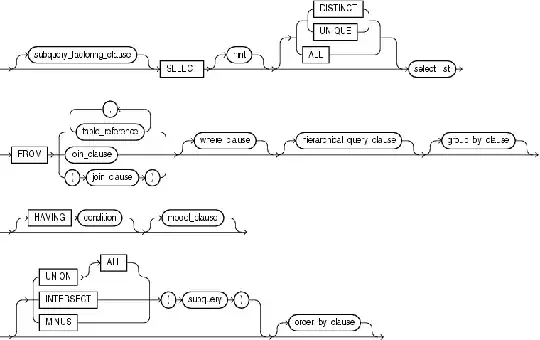

Looking at the images under Syntax here.

enter image description here

It shows the syntax (grammar) in a visual way. Is there specialized software for creating and editing such diagrams?

score 1 · Answer 1 · answered Aug 08 '23 at 15:20

1

SQLite's railroad diagrams are rendered using a diagramming tool made by SQLite's author: Pikchr.

answered Aug 08 '23 at 15:20

dolmen

1,312

score 1 · Answer 2 · answered Nov 02 '11 at 18:48

Some web searching for "syntax diagram generator" (and similar phrases) got me this: http://karmin.ch/ebnf/index

I've never used it but it looks like it will generate syntax diagrams. They won't look 100% like Oracle's but they should still be usable. I don't know what tool Oracles, uses. Probably some internal tool that they don't distribute.

Here's another one:

http://dotnet.jku.at/applications/Visualizer/

score 1 · Accepted Answer · edited May 23 '17 at 12:41

1

See Tool for generating railroad diagram on StackOverflow.

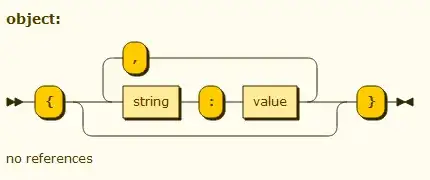

There is an online railroad diagram generator which generates SVG diagrams from EBNF

example railroad diagram

edited May 23 '17 at 12:41

Community

1

answered Nov 02 '11 at 20:52

RedGrittyBrick

85,717
