I recently bought a 2.5" internal HHD for my desktop computer. During the install I broke the plastic part off the SATA connecter port leaving only the bare pins. For an illustration see below (not the actual HHD):

Where I broke the plastic off

The plastic from that sata connect was then stuck in the SATA cable that had originally broken the plastic piece off. I was able to plug the cable back in and secure temporally with electrical tape. The hard drive works fine no issues with the setup I have. However I would like a more permanent solution.

What are people thoughts on hot gluing the sata cable to the hard drive effective making the cable a fixture of the hard drive and not removable? Glue doesn't conduct so I don't think it would have adverse effects and the glue comes out of the gun at roughly 193C which is much hotter than even the max temps of my cpu of around 37c.So it would seem that it would be a vaible option.

Will this work? More effective solutions?

Evan Carroll
  • 9,518
Nick
  • 1,571

2 Answers2

3

You mention both super glue, and hot glue.

Unfortunately I'm not sure if either will be a good solution.

Superglue is good for a nice clean break and is ideal on plastic. It may be the better of the two, but only if the surface area between the two is flat, clean and smooth (shiny). It won't hold on textured or uneven surfaces unless it meshes perfectly with the other surface. So it's really only strongest when you are repairing an actual break.

Hot glue is good when there are textured, large surfaces and you don't mind it flexing. It's good for felt or some other textured fabrics because of this, but can also be used on wood, cardboard etc especially if it's textured. I think it would be too fiddly to use on something so small and I don't think it would hold small bits of plastic.

If it were me, I would be looking at either replacing the drive, or making do (we haven't seen a photo of your current solution, maybe it's not too bad), or a solution including wire or cable ties if that's possible.

thomasrutter
  • 2,053
1

Hot glue will work if electrical tape works, and is not a bad idea for a solution.

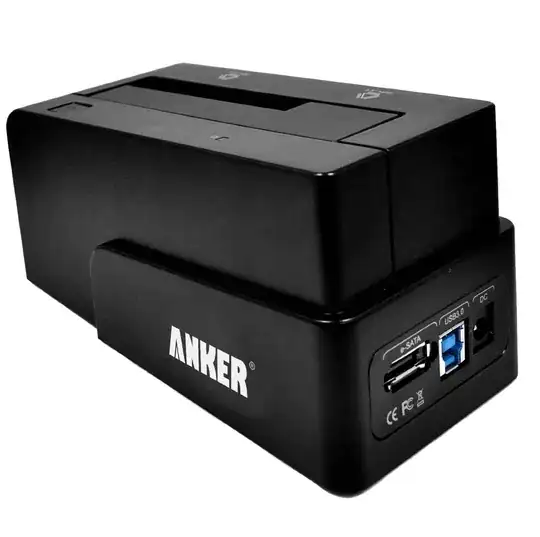

Putting the hard drive in a dock is a slightly better idea. In a dock gravity and the weight of the drive causes the connection to the dock itself. The dock pictured even has esata out.

An even better idea than that would be soldering on a new terminal. That would require a continuity meter and a fine soldering tip.

Anker Dock

Evan Carroll
  • 9,518
