What software is good for modeling network architecture?

Essentially, I want to do this:

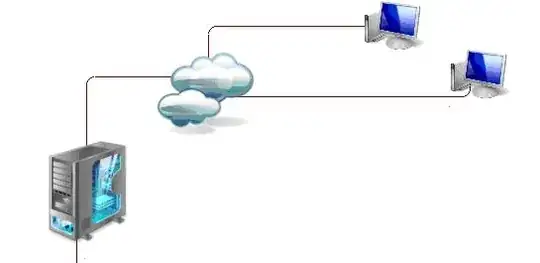

enter image description here

With what software could this be achieved? I need a free or open source solution. I don't need to do a network simulation, just a simple representations tool with nice graphical representation would do the job.

Matt
  • 206
user114298
  • 3

1 Answers1

1

If you just want an open-source diagramming tool, there are many. The ones that immediately come to my mind are

  • inkscape
  • dia
