Can HandBrake flip/rotate a video?

Question

I'd like to use HandBrake to compress some video that was taken via a camera that was mounted upside down.

I found a reference to a command-line rotate option, but I can't find it in the GUI.

Am I just missing it?

marche · Answer 1 · 2016-03-22T16:05:17.117

95

On the Extra Options under Video tab put , --rotate=4 to rotate clockwise by 90 or , --rotate=7 for 90 counterclockwise.

Note: It will not work without the preceding comma and space.

(As of version 0.10.2.7286)

----Edit: as of 0.10.5.x

90 degrees counterclockwise

, --rotate=8

90 degrees clockwise

, --rotate=3

edited Mar 22 '16 at 16:05

answered Nov 17 '13 at 17:09

marche

1,059

score 23 · Answer 2 · edited Jul 29 '14 at 19:33

From the Handbrake documentation:

    --rotate            Flips images axes
      <M>               (default 3)

To rotate 90° I used:

HandBrakeCLI -i source -o target.m4v --preset="Universal" --rotate="4"

with success. No luck getting this to work from the GUI.

note: I'm not sure why the above referenced blog post says:

a value of 1 flips on X, 2 flips on Y, and 3 flips on X and Y.

"3" is said to be default and as such should do no rotation at all. I've found this to be true.

info added by sorein:

HandBrake documentation: https://trac.handbrake.fr/wiki/CLIGuide

Sintax:
, --rotate=n
(comma and space needed)
It has to be entered in the tab VIDEO / EXTRA OPTIONS

Behaviour of "n"
The management of the ROTATE option is chaotic. It mixes FLIP and ROTATE!

1 : x flip
2 : y flip
3 : 180 degrees rotate (also the DEFAULT)
4 : 90 degrees rotate (clockwise)
5 : 90 degrees rotate + y flip
6 : 270 degrees rotate + y flip
7 : 270 degrees rotate

score 14 · Answer 3 · edited Jun 12 '20 at 13:48

From a recent post iPhone video rotation (and compression)

HandBrake (or at least the GUI) does not offer a way to rotate video. The HandBrake CLI does have a "rotate" option, however I found it is not a true rotation. Rather, it simply flips on an axis. The documentation is poor, but I found that a value of 1 flips on X, 2 flips on Y, and 3 flips on X and Y. So using a value of 3 is the same as doing a 180° rotation, which is useful for videos that are upside down, but not for videos that are sideways.

mencoder can do proper rotation.

While this refers to a Mac OS-X platform, I guess it should work for you too. Find a mencoder binary for your platform.

RandomEngy · Answer 4 · 2022-12-29T16:39:10.440

8

Full disclosure: VidCoder author here.

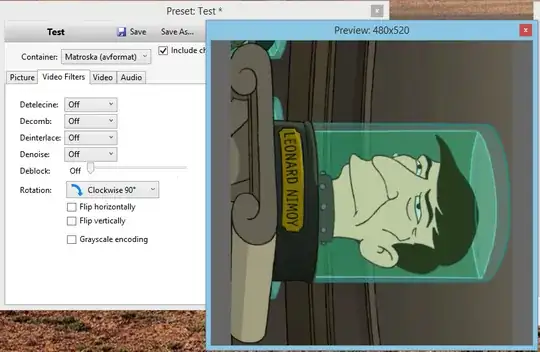

An alternative might be to use the latest VidCoder beta, which uses the HandBrake engine and has in-GUI support for rotation and reflection (with previews):

VidCoder rotation example

edited Dec 29 '22 at 16:39

answered Jun 15 '14 at 18:15

RandomEngy

442

score 4 · Answer 5 · answered Jul 27 '19 at 03:15

4

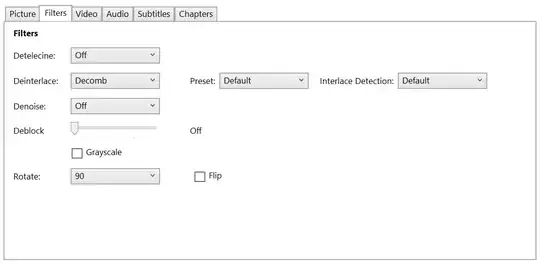

Note that as of Win x64 version 1.0.7 (and possibly earlier 1.0 versions), there is now a Rotate option under Filters, with the same 0/90/180/270 options that the CLI currently provides.

answered Jul 27 '19 at 03:15

Dave DuPlantis

395

score 2 · Answer 6 · edited Nov 17 '13 at 17:11

2

I've tried putting

-7 --rotate <3>

into the box in the Video tab under Optimise Video: Extra Options box.

It worked and flipped my video on the XY axis (180 degree rotation).

edited Nov 17 '13 at 17:11

slhck

235,242

answered Aug 14 '13 at 01:59

Jason Chin

29

score 1 · Answer 7 · edited Dec 25 '13 at 05:05

1

In Winx64 0.9.9.5530 the syntax is:

rotate=3

No leading or trailing comma, space, etc.

edited Dec 25 '13 at 05:05

random

15,201

answered Dec 25 '13 at 04:23

Chris

21

score 0 · Answer 8 · answered Nov 05 '21 at 18:36

The command line options posted above no longer appear to work, but a Rotation dropdown has been added to the GUI.

The first implementation of this option appears to have been buggy, so be sure to:

Update Handbrake to version 1.4.2 or higher.

Once you've done that, you can:

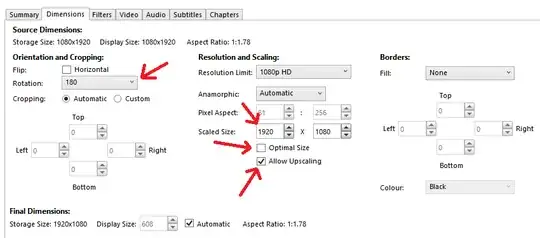

Go to the Dimensions tab and change the Rotation value to 90, 180, or 270.

However, Handbrake still has a weird bug/quirk where, if you attempt to set it to 90 or 270, it will clamp both dimensions at the lower value. So, for example, your rotated 1920x1080 video will get exported at 1080x1080 instead of 1080x1920.

To fix that, you can:

Uncheck the Optimal Size box.
Check the Allow Upscaling box.
Manually set the Scaled Size to the correct resolution.

After that, your video should be exported with the correct rotation and resolution. That said, be sure to double check the exported video to make sure that it looks correct.

score 0 · Answer 9 · answered Mar 14 '22 at 06:15

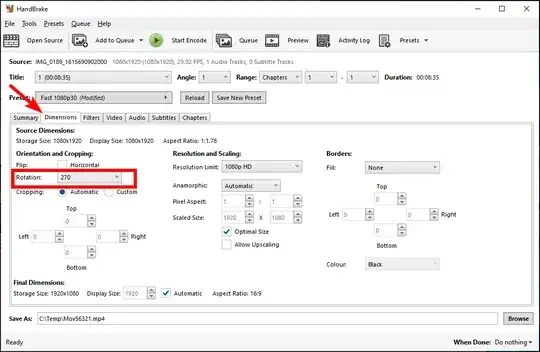

I just used v1.5.1 of HandBrake to rotate a .mov file and output it as an .mp4. In the Dimensions tab I just used the Rotation dropdown, in my case changing it from 0 to 270 (other options are 90 and 180).

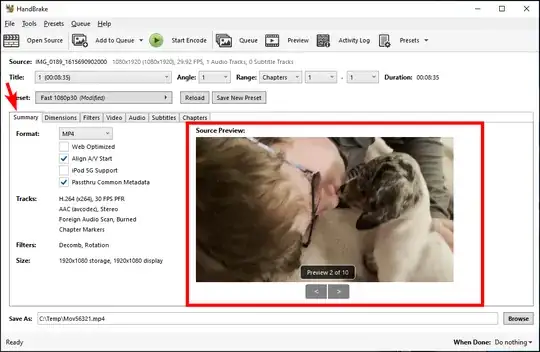

You can checkout a preview of the rotation on the Summary tab.
