I'm using my PC at idle all the time. I want to underclock the CPU at these hot summer days.

I got into the BIOS screen, and I saw a setting for "CPU Clock Ratio". I reduced it from 21 to 9. After a reboot I saw that CPU temperature reduced from 6XoC to 4XoC. CPU fan became much more silent. Everything looks fine.

Is this only thing I should have done? Is there any other settings should I alter? Like CPU core voltages, memory settings, etc? When I browse the BIOS screens I become confused, because there are a lot of hardware terms and details that I don't know.

My hardware is listed below:

  • CPU: Intel i5-750
  • Mainboard: Gigabyte P55A-UD3R
  • RAM: 2 x 2GB, DDR3, 1333MHz, CL7

I'm adding the relevant BIOS screens below:

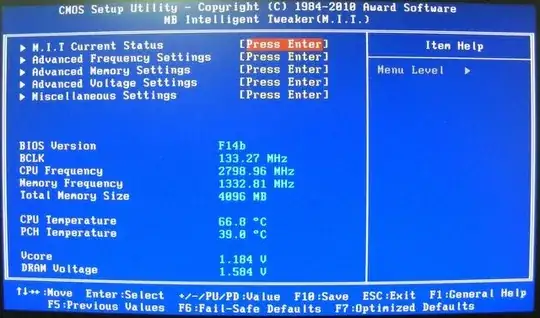

Main Screen

Main Screen
See Larger Version

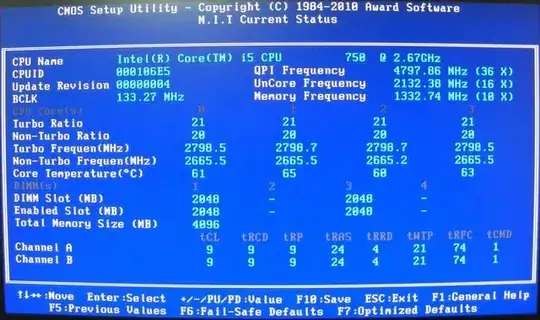

M.I.T Current Status

M.I.T Current Status
See Larger Version

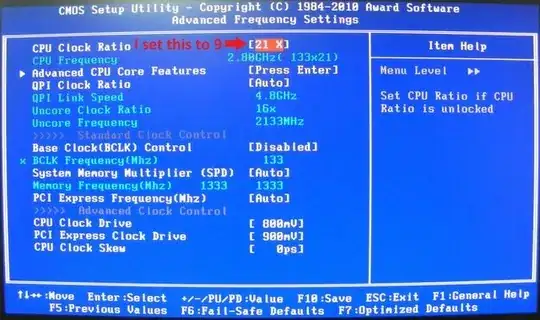

Advanced Frequency Settings

Advanced Frequency Settings
See Larger Version

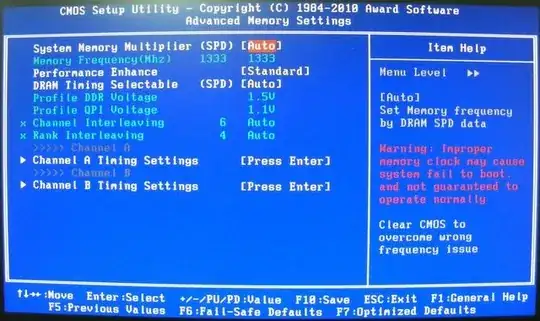

Advanced Memory Settings

Advanced Memory Settings
See Larger Version

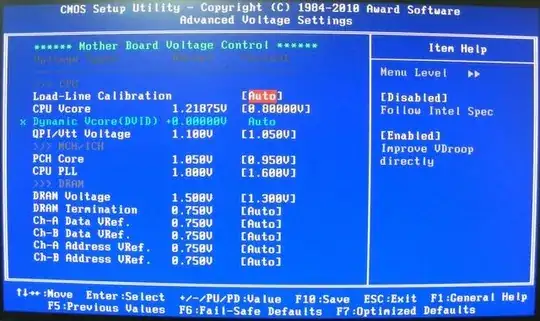

Advanced Voltage Settings

Advanced Voltage Settings
See Larger Version
