How to avoid the pesky "System Reserved" partition in Windows 7 and Windows 8?

Question

I want to avoid the 100 MB "System Reserved" partition which gets created when installing Windows 7 or Windows 8 on a blank hard drive.

What is the easiest way do do this?

Answer 1

You've got to partition the hard drive first. You can do this from the Windows 7 setup screen that appears after you boot from the Windows 7 DVD.

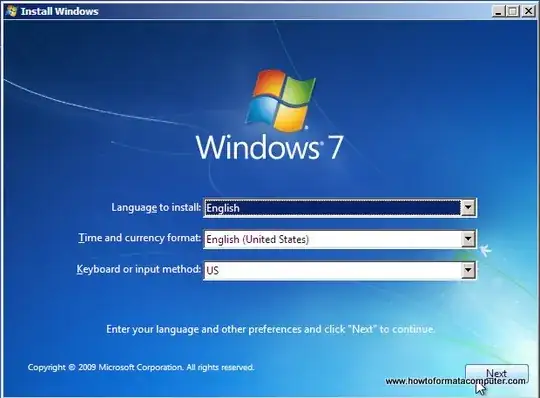

1. On the First setup screen, that asks you for language settings, Press Shift+F10. This will open a Command Prompt window.

2. Type diskpart and press Enter. This will start the disk partitioning program.

3. Type the following commands into the command prompt window:

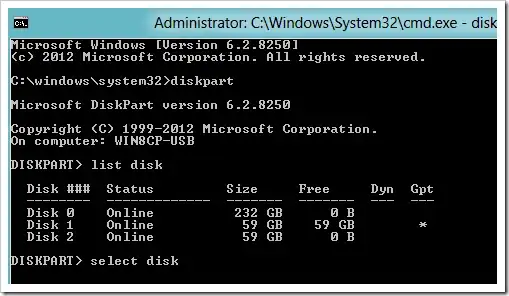

   • list disk (Shows a list of the disks currently in the computer. Take note of the Disk ### and Size columns)
   • select disk 0 (Replace 0 with the number of the disk you want to install Windows on)
   • clean (Wipes the disk of any existing partitions, for example if you're re-installing over the top of an existing Windows install)
   • create partition primary (Creates a partition that takes up the whole disk - if you want to specify a size add size=80000 for an 80 GB partition) NOTE, if you create a partition with less space than the full disk, create a second partition now as well, taking up the rest of the space (Giving the Windows System Reserved partition nowhere to run to!)*
   • select partition 1 (Selects the partition you just created. If you want to list your partitions first if you created multiple, use list partition)
   • active (Marks the selected partition as the current 'active' partition)
   • format fs=ntfs quick (Formats the partition using the NTFS filesystem. Only performs a quick format, doesn't bother zeroing out every bit on the hard drive)
   • exit (That's it!)

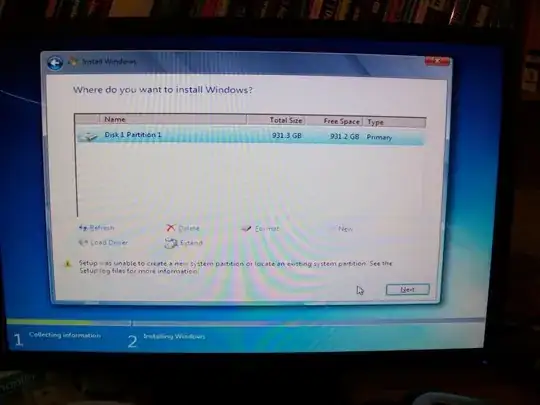

Close the command prompt window and continue the installation as per normal. You will see your partition(s) on this screen, and lo and behold, no 'System Reserved':

Answer 2

Apply the following steps when the Windows partitioning window apeares:

1. Create a partition on the blank hard.
2. Select the partition drive as the partition to install the Windows.
3. Click "Next". The 100MB partition will be created.
4. Delete the partition which you created in step 1.
5. Extend the 100MB partition to the desired size.
6. Select the partition which you extended in step 5 and select 'Format'
7. After formatting the 'system reserved partition' will now become normal 'system' partition

In fact you install the Windows on the 100MB partition created by windows and you cheat the Windows. This solution is tested on Windows 7 and 8.1.
