I'm looking at this Motherboard: GIGABYTE GA-990FXA-UD7 AM3+ AMD 990FX SATA 6Gb/s USB 3.0 ATX AMD Motherboard and it has 4 PCIe express slots. However, the GPU's that I want are dual slot (Sapphire Radeon HD 7970 OC 3GB DDR5 HDMI/DVI-I/Dual Mini DP PCI-Express Graphics Card 11197-01-40G) and there are 4 of them. So how can I possibly mount this properly? I've considered open air cases, large cases, etc and I'm stumped.

If I get flex cables and risers, then the motherboards just hang out in space. Finally, will the motherboard be able to support 4 GPU's?

I don't want to use SLI or CrossFire. Just 4 independent GPU's recognized by the OS and the MOBO. I'm not using them for gaming. I'm using them for Bicoin mining =)

Tamara Wijsman
  • 57,881
Shamoon
  • 277

1 Answers1

7

The manual identified by Daniel Beck suggests four dual-width graphics cards can be mounted as shown

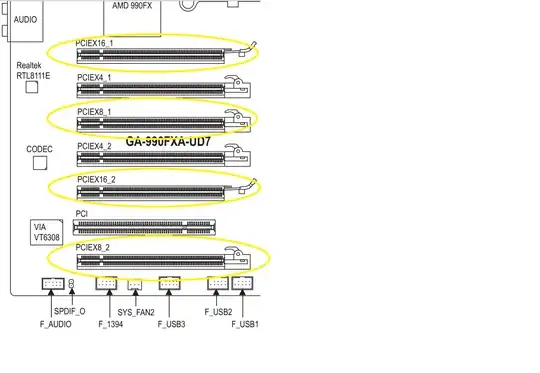

Motherboard PCIe slots

The HD 7970 is dual width but uses a sngle slot

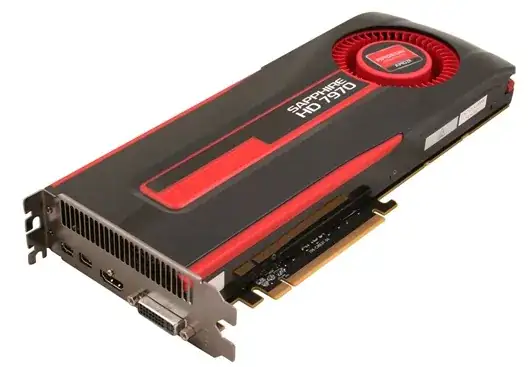

HD 7970

Putting a HD 7970 in the bottom slot looks a bit tight to me, with those other connectors under part of the HD7970.

The case also needs to be able to accommodate a dual-width card in that position. It looks rather unconventional to me (but I don't build gaming PCs).
