I've noticed on many small PC cases that the hard drives are installed vertically. In midi cases, towers and others of a larger housing, they are in the horizontal position.
What impact on a hard drive does a vertical position have? Does it affect the life? Is it more prone to errors?
(Not of SSDs (solid-state drive), just plain hard drive with all its mechanical parts inside.)
According to several manufacturers, mounting a 3/5" hard drive horizontally, vertically, or sideways doesn't affect the hard drive life significantly.
These are statements taken from the hard drive literature at each manufacturer's website; it's four years old but things probably haven't changed much.
Hitachi:
The drive will operate in all axes (6 directions). Performance and error rate will stay within specification limits if the drive is operated in the other orientations from which it was formatted.
Western Digital:
Physical mounting of the drive: WD drives will function normally whether they are mounted sideways or upside down (any X, Y, Z orientation).
Maxtor:
The hard drive can be mounted in any orientation.
Samsung:
As long as it is securely attached to the chassis, hard disk drives may be mounted either horizontally or vertically depending on how your computer's case is constructed.
When asked if the drive could be mounted at askew angles, their official positions were:
Manufacturer Contact method Response
------- --------------------- ---------------------
WD Tech support, email 90 degrees.
Hitachi Hitachi documentation 90 degrees.
Samsung Tech support, phone 90 degrees.
Fujitsu Tech support, chat 90 degrees +-5.
Seagate Tech support, email 90 degrees preferred,
but diagonal OK.
Maxtor Tech support, phone 90 degrees preferred, but in
real world, whatever.
By 90 degrees, they mean vertical, horizontal, or sideways.
It shouldn't matter which way you do it these days. But there's one possible caveat of making it vertical:
Under situations where cooling is at premium and you don't have the means to increase cooling of your system, mounting the disk horizontally with the label facing upwards could be seen as an advantage, since heat rises away from the disk surface more efficiently than if the disk was mounted vertically. But even so, any impact on performance or disk lifetime would only be noticeable in years to come. Just thought nevertheless to make this note.
At one time (long ago) manufactures advised against changing the orientation of a drive without reformatting it. This was due to the heads being affected by gravity and becoming misaligned with respect to the data. I have not seen such a notice in quite some time.
I had a drive that did not work anymore in vertical position. After dismounting, it ran successfuly in horizontal orientation and I was happy to be able to make a backup... Not sure if this has any relevance to the topic.
Old thread but I thought I'd put in my input. Every drive I have ever owned, external or internal...the ONLY ones that failed were the ones positioned vertically. My 2.5" samsung external drive has been positioned horizontally and its been working perfectly for 3 years, while my other external 2.5" was positioned vertically and it failed within a month. My WD my book 1tb is only vertical because the feet are positioned to stand it vertically. I will NEVER put a drive vertical...same goes for gaming systems. Horizontal will prolong life. If someone says its ok to go vertical...dont listen to them.
I have had many different combinations down to even mounting horizontal (no hard drive space, so just put a screw through the hole for a fan!
I can say that I have not seen any difference what so ever in life.
I mount hard drives vertically and horizontally and it doesn't affect performance at all. Oh and I work in IT :)
What hyperslug said, but importantly:

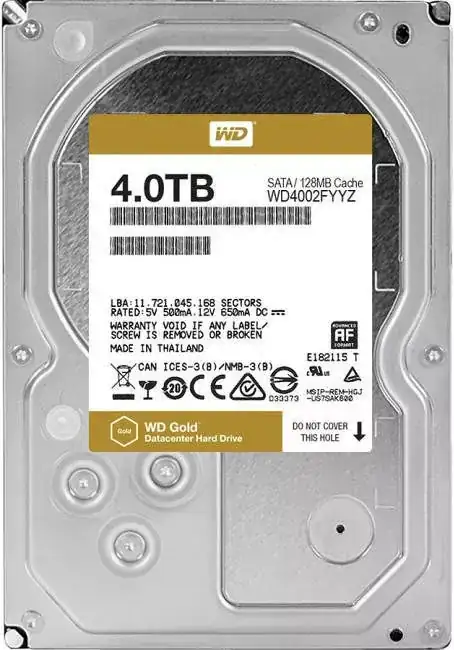

Don't cover the "breather hole", found on almost all non-helium drives.
It's not clear if placing the drive label-down on a surface like a table or book constitutes "covering" the hole. But it's probably best to not have the hole covered at all.
Also, Seagate says in their IronWolf Pro manual:
Allow a minimum clearance of 0.030 in (0.76mm) around the entire perimeter of the drive for cooling.
It's not clear if that means a perimeter in 3D space (6 sides of the drive should have a 0.76mm clearance) or in 2D space (the 4 sides of the drive, label side up, should have clearance)
I would also suggest putting the drive in a mechanically stable position. I.e. whatever it's resting on should not flex, nor should the drive move during operation.
mounting a hard disk drive vertically or horizontally does not affect the life span.
