I am installing an internal Delock 4-port USB 3.0 hub, so that I can have USB ports on the front panel of the machine.

I have plugged in the 4-pin cord, but I have a blue cord that has a USB contact on one end. I do not see any place to plug it in inside the box. Do I need it? If yes, does it go out the back and plug into one of those USB ports?

TFM
  • 4,273
laura maza
  • 1

1 Answers1

0

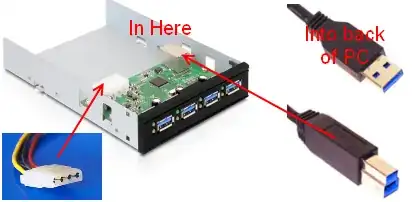

I'm guessing its one of these - 4 pin molex (thats the fat white connector), for power, USB A (thats the [::::] shaped connector) plugs into a PC USB 3.0 port on the back of your computer on one side, and the A shaped USB B connector plugs into a connector at the back of the port.

enter image description here

Journeyman Geek
