Assuming I have a SATA III SSD drive that has a throughput of >500 MB/s. What is a reasonable estimate of the effective throughput on a SATA II controller?

I know that SATA II has 3.0 GBit/s theoretical throughput but I am looking for a value of the effective throughput.

ARF
  • 731

4 Answers4

13

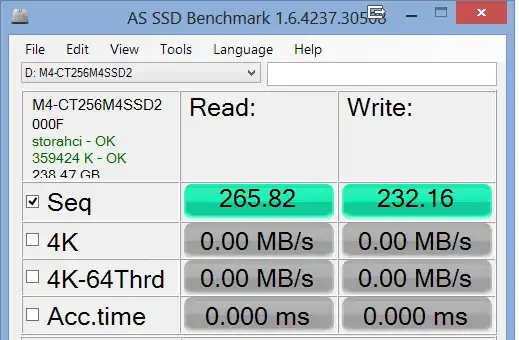

I have a SATA II motherboard and a SATA III Crucial M4 SSD that can read above 400MB/s. With the AS SSD benchmark tool I get 265MB/sec read rate, indicating my maximum SATA 2 throughput.

AS SSD

I should point out that the main benefit of a SSD is not maximum transfer rate, but low latency and fast random access. You still get all those benefits on SATA 2, so it's well worth it.

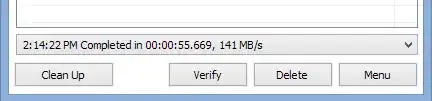

To cover a real-world file transfer scenario unrestricted by drive performance, I copied a 8GB file from a SSD to another SSD with TeraCopy. It yielded an average speed of 141MB/s, indicating a total of around 280MB/s throughput.

TeraCopy

mtone
  • 11,700
8

A little bellow 300MB/s. You can read more here: http://www.tomshardware.com/reviews/sata-6gbps-performance-sata-3gbps,3110.html Also: http://en.wikipedia.org/wiki/Serial_ATA

"Second generation SATA interfaces run with a native transfer rate of 3.0 Gbit/s, and taking 8b/10b encoding into account, the maximum uncoded transfer rate is 2.4 Gbit/s (300 MB/s)."

If you put that SSD on SATA II you should expect +/- 300MB/s.

ShadowHero
  • 1,017
0

A note for SATAII motherboards: AHCI mode vs IDE mode (BIOS setting) also plays a role. For instance my KINGSTON SH103S3 120GB SSD has a SEQ1M read speed of 199MB/sec in CrystalDiskMark (Win 10) in IDE mode on a SATAII interface, but goes up to 270MB/sec in AHCI mode (SATAII ~max speed). In the RND4K Q32T1 read the difference is even greater, from 20MB/sec to 68MB/sec.

This was on an Asrock A770de+ SATAII motherboard from 2009.

Joergen
  • 1
-2

I'd have to say it depends on the drive (rpm, cache, etc..), also the OS, are you referring to read or write, to/from what type of device, all this factors in. In the real world I have seen sata-to-sata copying of 50-60MB/s, which equates to .39-.46 GBit/s, so a little over 10% of theoretical throughput. I wasn't complaining, this was a windows machine w/ 4GB ram, and this was sustained for at least a couple of minutes.

MDMoore313
  • 6,336
