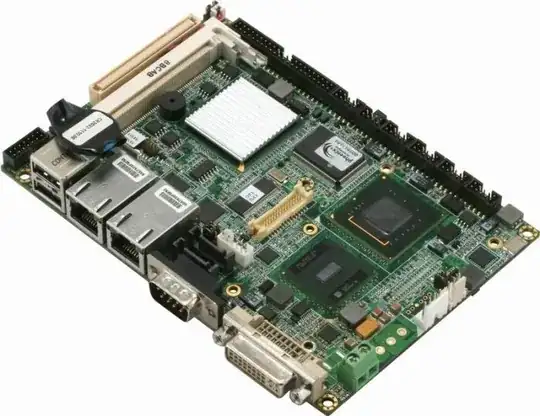

I'm in the possession of the GENE-9455:

enter image description here

At the top left corner there is an IDE connector, however, this is not a normal IDE connector, it's a smaller one. I need to find a cable for this connector. I also have a hard disk with a connector of the same size which I want to connect to the board.

The pins are approximately 2mm from each other.

How is this connector size called?

1 Answers1

4

Could it be a 44pin Laptop PATA connector? The hard drive you linked is a 2.5" Laptop HDD at least.

Consult this for visual enlightenment (Epic Poster with all kinds of connectors etc.): http://sonic840.deviantart.com/art/Computer-hardware-poster-1-7-111402099

Adapter: http://www.ebay.com/itm/2-5-Laptop-SATA-to-44p-PATA-IDE-HDD-Adapter-Converter-/260778737551#ht_2138wt_1012

TheUser1024
