I was doing some cleaning of my older Acer Aspire 3860 laptop and noticed that my wireless card looks alot like an mSATA drive. I have not been inside laptops too often (clean, add RAM) but never really had a part stick out at me.

Is this a PCIe slot that I can put anything in or is it a dedicated wifi slot?

There looks to be a deal on a drive and I am wondering if anyone knows that a swap for the wifi is possible?

If I look up Atheros - it is described as a wireless G wifi mini PCIe.

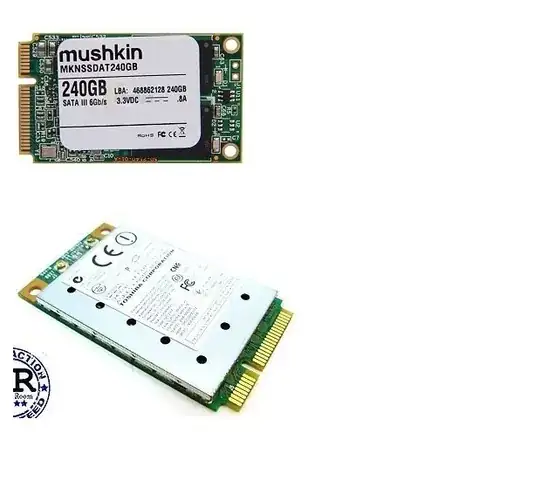

Here is an image of the two cards.

Top card is mSATA, bottom is Wifi. compare

Carl B
  • 6,660

1 Answers1

3

Unfortunately it is not possible!

A quote from Wikipedia:

Mini-SATA, which is distinct from the micro connector, was announced by the Serial ATA International Organization on September 21, 2009. Applications include netbooks and other devices that require a smaller solid-state drive. The connector is similar in appearance to a PCI Express Mini Card interface, and is electrically compatible; however, the data signals (TX±/RX± SATA, PETn0 PETp0 PERn0 PERp0 PCI-express) need connection to the SATA host controller instead of the PCI-express host controller.

Simon
  • 3,973
