I have a DFI Lanparty UT nF3 250GB and an AMD Athlon XP 64 3200+ lying around, which I might use for a "always on" family computer (web browsing, µTorrent, file storage, etc.).
Is it possible to use it safely without the fan?
Do I need an after market cooler or does the stock cooler suffice?
Edit: Oops! It's an Athlon 64 3200+, not a XP. Sorry. Which according to the table gives me even less leverage with the temps, 70° or 65° if I'm unlucky.
You can probably get away with the stock cooler, but you do need a fan with it. I've got an Athlon XP 2500+ still in service and it gets quite hot.
Those were workhorse desktop CPUs when they were originally put on the market. If you want a fanless system, go with a modern low-power CPU (Atom or similar) that is designed for such an application.
Edit: You can certainly experiment. A (much) larger cooler will help. Underclocking the CPU will help (assuming BIOS supports for it) -- but it might not help enough.
If you're going to experiment, do so carefully, take temperature measurements often, and test out your system with copies of data that you can afford to lose.
Edit 2: TonyUser posts a table of maximum CPU temperatures that indicates the Athlon 64 3200+ can handle up to 70°C. Unless it's a Socket 939, which might be limited to 65°C -- you'd need to check the manual from AMD to be sure.

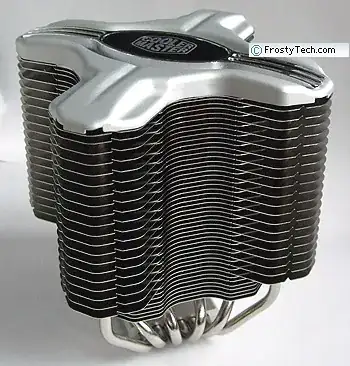

this heatsink will do as long as you have some airflow in your case:
price is about €36
http://www.frostytech.com/articleview.cfm?articleid=2273
I’ve done it. I was able to underclock through the CPU speed jumpers, but you may have other options. i. e., the BIOS. Also, instead of discarding the fan altogether, I connected it to the 5-volt power source (may be a red wire, keep polarity in mind), but make sure the fan still runs, or at least starts every time you power up. You can also use a different fan that will still work with the 5 volts, but leave this step for last. Do the underclocking first.
When you first try any configuration, keep a finger on the heat sink. If it gets hot enough that you are not able to keep the finger on it for long, power down the machine immediately because that configuration doesn’t work. Also, keep case as open as possible, or heat will build up inside it, especially if it is warm where the computer is kept.
Do all this at your own risk.
With no fan at all, I doubt your CPU will last you very long. You existing radiator was not designed to function as a passive cooler, I would get a replacement / additional fan first. If you don't want to do that, get a larger radiator. There's a decent overview of cooling choices here.
You might want to look at this paper Athalon wrote on ways to measure your CPU temperature. It says the easiest way is to use software, but there is no one program that provides accurate data for all motherboards. There is a program out there Motherboard, that may provide accurate readings, but I've never used it. RealTemp is for Intel chips, doubt it would be accurate on an AMD.
Just because something is old doesn't mean it's cold.
Modern architectures are not just faster, they're also many times more efficient. An underclocked i7 will run pretty cool, it can do more, faster, on less power.
Of course, that's probably out of your price range, so consider investing in a dedicated low-power CPU and a good heatsink.
I tried it the hard way this week: my (boxed) cpu-cooler broke after one year, but PC worked for a few more days. Without warning CPU overtemperature, since the CPU heatsink was big enough and very close to power supply air stream.
The passive cooled graphics adapter was not so lucky, it fried yesterday (that's when I noticed CPU fan fail) and took a part of Mainboard power supply with it:-(
I learned:
Use a silent (expensive) case fan and think about airflow before getting rid of CPU fan.
Dont't operate PC with case opened, because some mainboard heatsinks won't get enough airflow.
Test by touching ALL heatsinks inside PC case. Do not forget graphics adapter.
