I have long wondered what this port is on some harddrives?

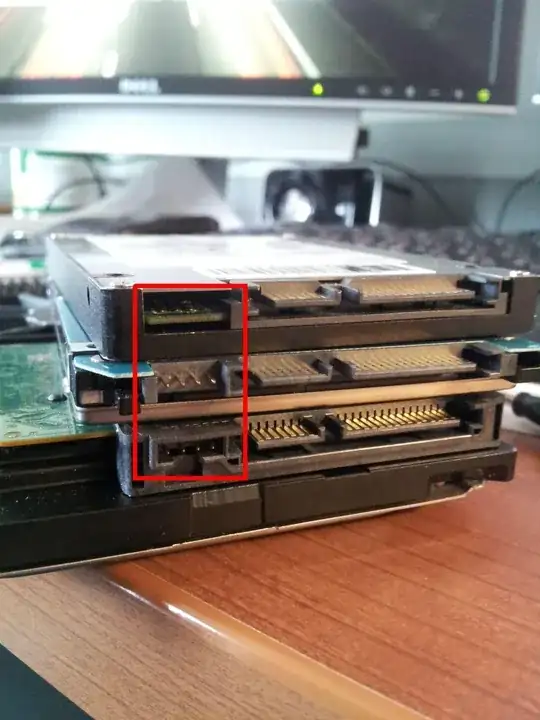

I assume it may be some sort of serial or factory programming port. The top-most hard drive in the stack pictured below is an SSD, it has the same pins, just not broken out on a connector.

mystery port

madmaze
  • 4,444

1 Answers1

4

The are jumper pin arrays for sata specific options. IDE drives could be daisy chained so they had more options so they used 8-pin arrays, but its the same basic concept. jumper a pair of pins to enable a setting.

see more info here: What is the purpose of this 4-pin interface on SATA HDDs and why doesn't it exist on SSDs?
