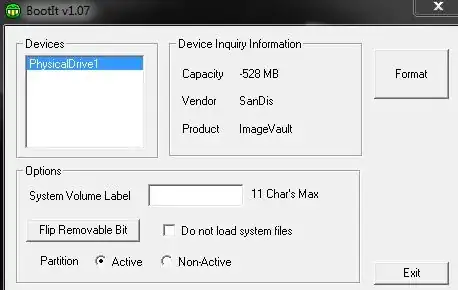

I'm trying to use DiskPart to create two partitions on my flash drive. One for storage and one for a bootable OS. I've used BootIt as suggested in this question/answer, however it doesn't seem to help one way or the other. Perhaps it's out of date for Windows 7, the OS I'm working on, and yes I tried running BootIt in compatibility mode with admin privileges.

enter image description here

From Disk Management I wasn't able to do anything but format the current partition, change drive letter, and change drive label.

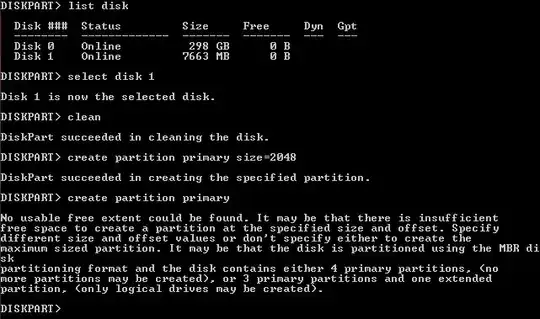

I then used DiskPart, which seems to be the best option, to create the first partition. I can see the unallocated space available in Disk Management after doing this, but when I try to create another partition I get an error.

enter image description here

enter image description here

UPDATE:

Tried using extended and got the same error message as above. Retried from scratch using offset and received a different error.

enter image description here

Community
  • 1
Iron3eagle
  • 201

1 Answers1

6

Flash Drives are recognized as removable media. According to Microsoft's description of the Diskpart Utility here:

You cannot use Diskpart to create a partition on removable media. Windows supports at most one MBR partition on removable media.

I believe this limitation also applies to Disk Management. You'll have to use 3rd party software to create multiple partitions on your flash drive. I've done it before using GParted on Lubuntu.

Sherlock Bytes
  • 416
