I have a motherboard asrock n68 s-ucc, and i need a hand identifying which pins on the board to connect my front audio header connectors to.

On the connectors I have:

double connector: GND and MIC IN double connector: LINE OUT FL and LINE OUT RL double connector: LINE OUT FR and LINE OUT RR simple connector: MIC POWER

On the motherboard I have:

GND PRESENCE# MIC_RET OUT_RET MIC2_L MIC2_R OUT2_R J_SENSE OUT2_L

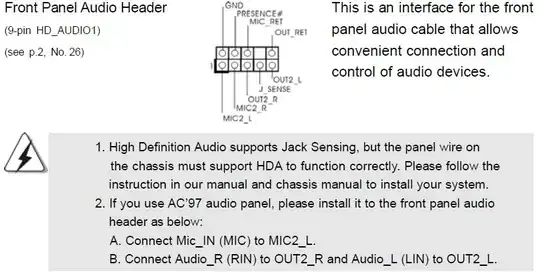

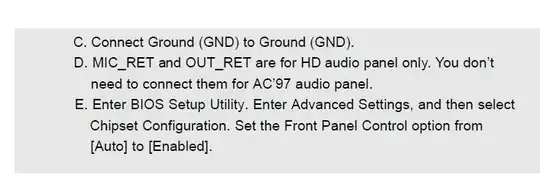

manual of motherboard enter image description here enter image description here

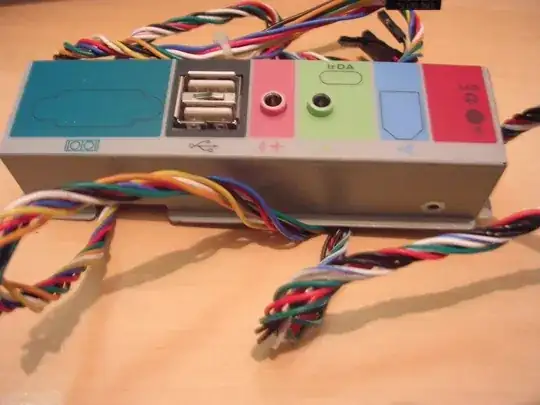

and my front panel

enter image description here Thanks so much to all
