I'll provide pictures so you guys can see, but basically I recently bought a new case for my pre built Lenovo k330b. I cannot find how I'm supposed to position the connectors.

Do I need to get an entirely new motherboard?
Is there any adapter I can buy?

Any help is welcome.

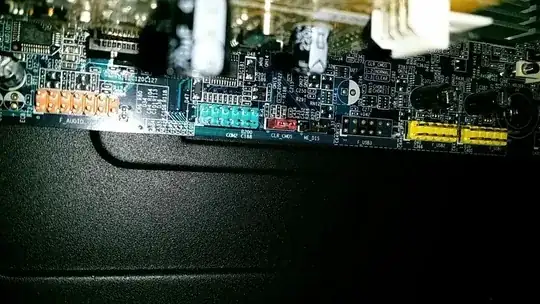

Motherboard

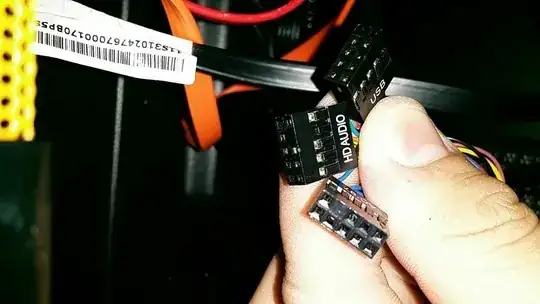

Connectors

Hennes
  • 65,804
  • 7
  • 115
  • 169
Angelo Cassinelli
  • 101

3 Answers3

1

You need these Lenovo Motherboard to Standard ATX Case Adapter Cables (3 Types)

https://www.moddiy.com/products/IBM-Lenovo-Motherboard-14-Pin-to-Standard-ATX-Case-Adapter-Cable-30cm.html

https://www.moddiy.com/products/IBM-Lenovo-Motherboard-13-Pin-to-Standard-9-Pin-HD-Audio-Adapter-Cable.html

https://www.moddiy.com/products/IBM-Lenovo-Motherboard-11-Pin-to-Standard-9-Pin-USB-Adapter-Cable.html

Eric
  • 11
0

3pcs Suitable for Lenovo motherboards with ordinary chassis transfer wiring switch cable USB cable audio cable three-piece set https://a.aliexpress.com/_mOiyT40

This is all you need. Around 3 dollars for 3 pieces from a trustworthy china shop. Free shipping. If link is dead, similar stuff can be found for similar price, just look around, normally amazon & ebay are gonna be pricey.

user1799811
  • 1
0

I'd start by digging up a manual - I had a very similar question in the past

You use HD audio on the orange port, USB2.0 on either one of the yellow ones. They look about standard to me. AC97 is super rare these days.

Weirdly, your USB3.0 port is not populated, and that would use a connector styled similar to an old school PATA plug anyway.
