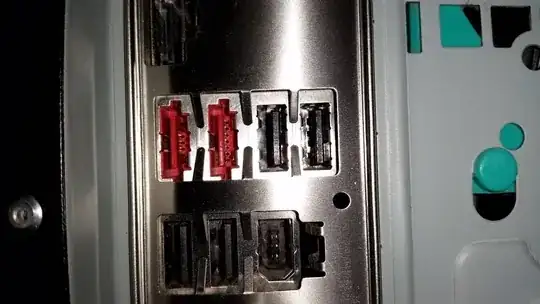

Are the red ports below eSATAp that can power a 3.5'' HDD?

esatap

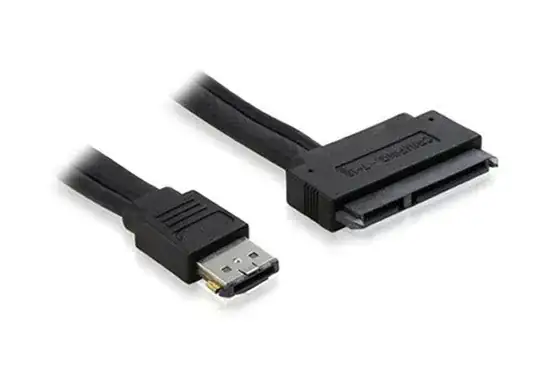

I saw this post about 12V eSATAp and I would guess that they are. However I have a cable like this: cable

which claims to support 3.5'' drives on 12V, but the disk does not even start spinning. I'm trying to understand if the cable is faulty or the port is not the one I think it is (the disk works fine, by the way).

Community
  • 1
gozzilli
  • 150

1 Answers1

1

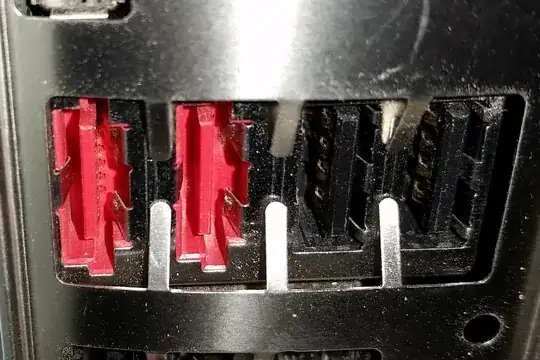

On second thought, and with a better picture (below), I can now see that there is no pin 12/13 in my port, which I guess means that it's an eSATA rather than an eSATAp port. That means that I cannot connect a 3.5'' drive without external power. Shame.

enter image description here

gozzilli
