20

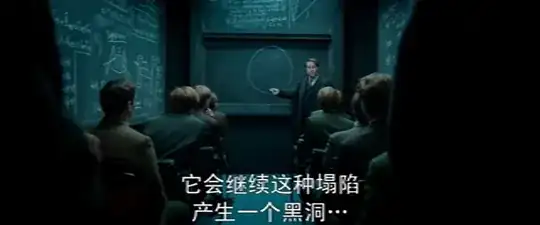

Is it possible to hardcode subs with ffmpeg? By hardcode, I mean overlaying the subtitles as pictures on top of the video, and would be unremovable because they would be a part of the video. I tried to convert the subtitle to .ass and then tried to encode it, but ffmpeg does not do anything, and returns the same file. I used VLC to encode them, but it just embeds them in the video file itself and does not include them as pictured direclty overlayed on the video. My end result should be something like this:

enter image description here

Created fonts.conf, then retried:

Z:\New folder>ffmpeg -i input.wmv -vf "subtitle=sub.srt" output.wmv ffmpeg version N-69247-g85d7e02 Copyright (c) 2000-2015 the FFmpeg developers built on Jan 25 2015 02:18:48 with gcc 4.9.2 (GCC) configuration: --enable-gpl --enable-version3 --disable-w32threads --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r libavutil 54. 17.100 / 54. 17.100 libavcodec 56. 20.100 / 56. 20.100 libavformat 56. 19.100 / 56. 19.100 libavdevice 56. 4.100 / 56. 4.100 libavfilter 5. 8.101 / 5. 8.101 libswscale 3. 1.101 / 3. 1.101 libswresample 1. 1.100 / 1. 1.100 libpostproc 53. 3.100 / 53. 3.100 Guessed Channel Layout for Input Stream #0.1 : stereo Input #0, asf, from 'input.wmv': Metadata: major_brand : isom minor_version : 1 compatible_brands: isomavc1 encoder : Lavf56.15.101 PRIVATE/TotalBitrate: 628000 WM/VideoHeight : 240 WM/VideoWidth : 320 WM/VideoFrameRate: 0 title : input Duration: 01:47:53.77, start: 0.000000, bitrate: 656 kb/s Stream #0:0: Video: wmv2 (WMV2 / 0x32564D57), yuv420p, 320x240, SAR 120:67 DAR 160:67, 25 fps, 25 tbr, 1k tbn, 1k tbc Stream #0:1: Audio: wmav2 (a[1][0][0] / 0x0161), 44100 Hz, 2 channels, fltp, 128 kb/s [AVFilterGraph @ 0000000002c5b4a0] No such filter: 'subtitle' Error opening filters!

I replaced "subtitle=sub.srt" with subtitle="sub.srt" and subtitle=sub.srt and got the same result.

I converted the subtitle to .ass: ffmpeg -i sub.srt sub.ass

Then I used -vf ass=sub.ass and the video encoded, but without subtitles.

I pasted exactly the same code given by in fonts.conf.

Also, how can I choose fonts? Should I use drawtext?

Pierre.Vriens
  • 1,425
1234asdf12399
  • 203

4 Answers4

18

In order to hardcode subtitles, your ffmpeg version needs to be compiled with libass support. Download a static build from https://ffmpeg.org/download.html, and then use:

ffmpeg -i input.wmv -vf "subtitles=sub.srt" \
  -c:v libx264 -crf 20 \
  -c:a aac -b:a 192k
  output.mp4

Alternatively you can use -vf "ass=sub.ass" if you have ASS subtitles.

With this command, you set the source of the subtitles filter to the file containing the subtitles. If you want to burn the subtitles of the input video file itself, replace sub.srt with the name of the input video file.

You can change the CRF value to change the video quality/size. More info on CRF here.

More info on burning subtitles can be found on the FFmpeg Wiki.

Note that I replaced the WMV/WMA output from the original question with H.264 and AAC. ffmpeg doesn't have an encoder for recent versions of WMV, so your output would have looked quite bad. And since you're hardcoding the subtitles, you have to re-encode the video anyway.

In the OP's question, there was a typo:

[AVFilterGraph @ 0000000002c5b4a0] No such filter: 'subtitle'
Error opening filters!

The filter is called subtitles with an s. Also, the ffmpeg version was not compiled with --enable-libass, so it could not be used to hardcode subs.

slhck
  • 235,242
12

I have successfully tested this command:

ffmpeg -i input.mp4 -vf "subtitles=subtitle.srt" output.mp4

Note: If the output says something about No usable fontconfig configuration file found, using fallback, you must create inside ffmpeg's bin folder a new folder named fonts with a file inside (fonts.conf) that specifies where ffmpeg must look for fonts.

I have used this file in order for it to work (tested on Windows):

<?xml version="1.0"?>
<!DOCTYPE fontconfig SYSTEM "fonts.dtd">
<!-- /etc/fonts/fonts.conf file to configure system font access -->
<fontconfig>

<!-- Font directory list -->


<dir>./</dir>
   <dir>../fonts</dir>
   <dir>./fonts</dir>
   <dir>~/.fonts</dir>
   <dir>WINDOWSFONTDIR</dir>


<!--
  Accept deprecated 'mono' alias, replacing it with 'monospace'
-->
   <match target="pattern">
      <test qual="any" name="family">
         <string>mono</string>
      </test>
      <edit name="family" mode="assign">
         <string>monospace</string>
      </edit>
   </match>


<!--
  Accept alternate 'sans serif' spelling, replacing it with 'sans-serif'
-->
   <match target="pattern">
      <test qual="any" name="family">
         <string>sans serif</string>
      </test>
      <edit name="family" mode="assign">
         <string>sans-serif</string>
      </edit>
   </match>


<!--
  Accept deprecated 'sans' alias, replacing it with 'sans-serif'
-->
   <match target="pattern">
      <test qual="any" name="family">
         <string>sans</string>
      </test>
      <edit name="family" mode="assign">
         <string>sans-serif</string>
      </edit>
   </match>


<!--
  Load local system customization file
-->
   <include ignore_missing="yes">conf.d</include>


<!-- Font cache directory list -->


<cachedir>WINDOWSTEMPDIR_FONTCONFIG_CACHE</cachedir>
   <cachedir>~/.fontconfig</cachedir>


<config>
<!--
  These are the default Unicode chars that are expected to be blank
  in fonts.  All other blank chars are assumed to be broken and
  won't appear in the resulting charsets
 -->
      <blank>
         <int>0x0020</int>   <!-- SPACE -->
         <int>0x00A0</int>   <!-- NO-BREAK SPACE -->
         <int>0x00AD</int>   <!-- SOFT HYPHEN -->
         <int>0x034F</int>   <!-- COMBINING GRAPHEME JOINER -->
         <int>0x0600</int>   <!-- ARABIC NUMBER SIGN -->
         <int>0x0601</int>   <!-- ARABIC SIGN SANAH -->
         <int>0x0602</int>   <!-- ARABIC FOOTNOTE MARKER -->
         <int>0x0603</int>   <!-- ARABIC SIGN SAFHA -->
         <int>0x06DD</int>   <!-- ARABIC END OF AYAH -->
         <int>0x070F</int>   <!-- SYRIAC ABBREVIATION MARK -->
         <int>0x115F</int>   <!-- HANGUL CHOSEONG FILLER -->
         <int>0x1160</int>   <!-- HANGUL JUNGSEONG FILLER -->
         <int>0x1680</int>   <!-- OGHAM SPACE MARK -->
         <int>0x17B4</int>   <!-- KHMER VOWEL INHERENT AQ -->
         <int>0x17B5</int>   <!-- KHMER VOWEL INHERENT AA -->
         <int>0x180E</int>   <!-- MONGOLIAN VOWEL SEPARATOR -->
         <int>0x2000</int>   <!-- EN QUAD -->
         <int>0x2001</int>   <!-- EM QUAD -->
         <int>0x2002</int>   <!-- EN SPACE -->
         <int>0x2003</int>   <!-- EM SPACE -->
         <int>0x2004</int>   <!-- THREE-PER-EM SPACE -->
         <int>0x2005</int>   <!-- FOUR-PER-EM SPACE -->
         <int>0x2006</int>   <!-- SIX-PER-EM SPACE -->
         <int>0x2007</int>   <!-- FIGURE SPACE -->
         <int>0x2008</int>   <!-- PUNCTUATION SPACE -->
         <int>0x2009</int>   <!-- THIN SPACE -->
         <int>0x200A</int>   <!-- HAIR SPACE -->
         <int>0x200B</int>   <!-- ZERO WIDTH SPACE -->
         <int>0x200C</int>   <!-- ZERO WIDTH NON-JOINER -->
         <int>0x200D</int>   <!-- ZERO WIDTH JOINER -->
         <int>0x200E</int>   <!-- LEFT-TO-RIGHT MARK -->
         <int>0x200F</int>   <!-- RIGHT-TO-LEFT MARK -->
         <int>0x2028</int>   <!-- LINE SEPARATOR -->
         <int>0x2029</int>   <!-- PARAGRAPH SEPARATOR -->
         <int>0x202A</int>   <!-- LEFT-TO-RIGHT EMBEDDING -->
         <int>0x202B</int>   <!-- RIGHT-TO-LEFT EMBEDDING -->
         <int>0x202C</int>   <!-- POP DIRECTIONAL FORMATTING -->
         <int>0x202D</int>   <!-- LEFT-TO-RIGHT OVERRIDE -->
         <int>0x202E</int>   <!-- RIGHT-TO-LEFT OVERRIDE -->
         <int>0x202F</int>   <!-- NARROW NO-BREAK SPACE -->
         <int>0x205F</int>   <!-- MEDIUM MATHEMATICAL SPACE -->
         <int>0x2060</int>   <!-- WORD JOINER -->
         <int>0x2061</int>   <!-- FUNCTION APPLICATION -->
         <int>0x2062</int>   <!-- INVISIBLE TIMES -->
         <int>0x2063</int>   <!-- INVISIBLE SEPARATOR -->
         <int>0x206A</int>   <!-- INHIBIT SYMMETRIC SWAPPING -->
         <int>0x206B</int>   <!-- ACTIVATE SYMMETRIC SWAPPING -->
         <int>0x206C</int>   <!-- INHIBIT ARABIC FORM SHAPING -->
         <int>0x206D</int>   <!-- ACTIVATE ARABIC FORM SHAPING -->
         <int>0x206E</int>   <!-- NATIONAL DIGIT SHAPES -->
         <int>0x206F</int>   <!-- NOMINAL DIGIT SHAPES -->
         <int>0x2800</int>   <!-- BRAILLE PATTERN BLANK -->
         <int>0x3000</int>   <!-- IDEOGRAPHIC SPACE -->
         <int>0x3164</int>   <!-- HANGUL FILLER -->
         <int>0xFEFF</int>   <!-- ZERO WIDTH NO-BREAK SPACE -->
         <int>0xFFA0</int>   <!-- HALFWIDTH HANGUL FILLER -->
         <int>0xFFF9</int>   <!-- INTERLINEAR ANNOTATION ANCHOR -->
         <int>0xFFFA</int>   <!-- INTERLINEAR ANNOTATION SEPARATOR -->
         <int>0xFFFB</int>   <!-- INTERLINEAR ANNOTATION TERMINATOR -->
      </blank>
<!--
  Rescan configuration every 30 seconds when FcFontSetList is called
 -->
      <rescan>
         <int>30</int>
      </rescan>
   </config>


</fontconfig>
ccpizza
  • 8,241
NuTTyX
  • 2,716
0

Use the following parameters:

ffmpeg -i input.mp4 -filter:v subtitles=subtitle.srt -c:a copy -c:v libx264 -crf 22 -preset veryfast output.mp4

This way it works with regular FFmpeg on Linux, without any special libraries compiled into it.

More information and parameters to change:

https://copyprogramming.com/howto/ffmpeg-hardcoded-subtitles-from-the-top-bigger-with-thicker-stroke-on-a-dark-background

Binyomin
  • 119
  • 5
0

Some further useful options

The minimal command from https://superuser.com/a/869343/128124 works for me, but here are a few useful options that are mentioned in the documentation of the subtitles filter but which could use a few further examples:

  • Make the font larger:

    ffmpeg -i in.webm -vf subtitles=filename=test.srt:force_style='Fontsize=30' out.webm

    Here we use the Fontsize style of the ASS subtitle format which is mentioned at http://www.tcax.org/docs/ass-specs.htm 30 is comically large on a 720p video.

  • Move the subtitles up:

    ffmpeg -i in.webm -vf subtitles=filename=test.srt:force_style='MarginV=240' out.webm

    Not sure what the unit is. On a 720x480 video, this moved the subtitles all the way to the top.

  • Do both of the above at once:

    ffmpeg -y -i in.webm -vf "subtitles=filename=test.srt:force_style='Fontsize=30,MarginV=240'" out.webm

    Note how the single quotes ' must be passed as literals to the command when doing multiple options at once, so we escape them on Bash with double quotes ".

  • Make the entire background of the text black rather than just adding a black outline, text remains white:

    ffmpeg -y -i in.webm -vf subtitles=filename=test.srt:force_style=BorderStyle=3 out.webm

    This can be useful to increase readability for particularly challenging backgrounds, but it is quite invasive.

Related questions:

Tested on fmpeg 7.0.2, Ubuntu 24.10.

Ciro Santilli OurBigBook.com
  • 12,482
