I am asking it here because I did not know where to ask this question, looked it up and this is what I found: https://meta.stackexchange.com/questions/57998/hardware-questions-and-stack-exchange

I am looking for an IDE connector for Fujitsu MHT2030AT hdd (Apple ibook G4). I would be happy as long as it lets me connect to any of the today's technology USB, SATA, anything.

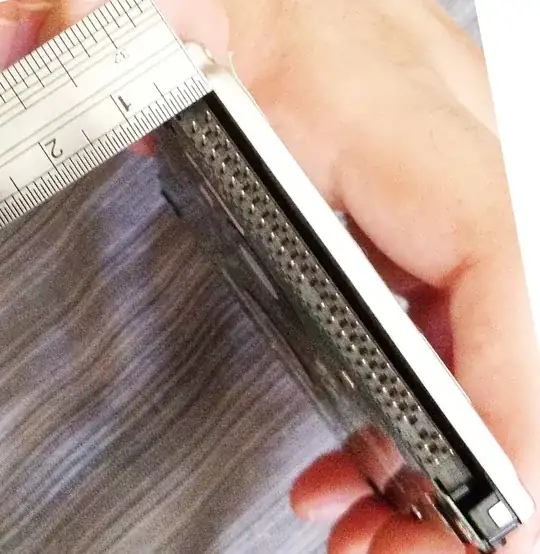

Here's what it looks like (Scale - centimeter)

enter image description here

The detailed manual of this hdd can be found here: http://www.fujitsu.com/downloads/COMP/fcpa/hdd/discontinued/mht20xxat_prod-manual.pdf

It's basically a 44 pin connector. So far I have tried a couple of 44 pin connectors on eBay Australia but none of them are were thin enough to fit this disk.

Any help would be much appreciated.

Cheers

fixer1234
  • 28,064
Anon
  • 213

1 Answers1

1

You will need a connector for a 2.5" IDE drive.

They will look something like this:

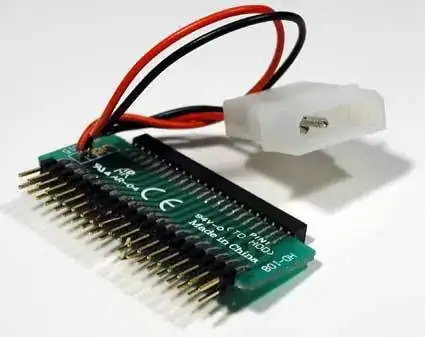

2.5" to 3.5" IDE connector

You can find a list of compatible connectors here (depending on how you want to connect it):

http://www.ebay.com/bhp/laptop-ide-adapter

Or, you could buy something like this, which is more convenient, if you are going to use old hard drives on a regular basis:

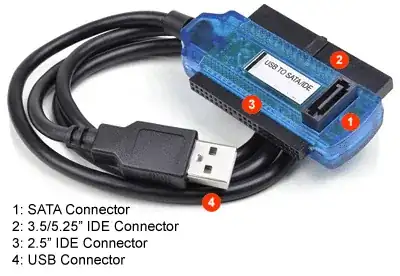

USB to IDE & SATA connector

One of these options will let you connect a 2.5" IDE drive (which is what your picture shows) to a computer with either USB or 3.5" IDE or SATA (not shown in my pictures).
