libreoffice writer figure cross-refencence

Question

In LibreOffice Writer I cannot create a cross-reference to an image, it is only possible to create cross-reference to it's caption. By using the created link in PDF the screen jumps to the caption, not to the image.

Answer 1

There are two solutions - depending on your needs:

1. For single images, you could insert a bookmark above the image, and add a cross-reference pointing to that bookmark. In the resulting PDF, the crossref jumps to the image. Of course, this isn’t viable if there are a lot of pics to cross-ref (you may use a macro for this kind of task).

2. Instead of cross references, use hyperlinks (Insert → Hyperlink … or Crl+K). While cross references can’t address objects like images directly and need a caption as target, hyperlinks may point to images directly.

• Pro: No need to put additional bookmarks near your images.
• Con: You can’t automatically use the target page number or caption as hyperlink text.

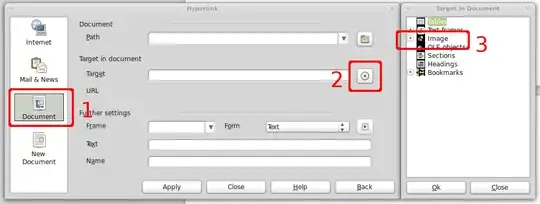

To insert a hyperlink to an image: Make sure to select “Document” at the left of the insert Hyperlink dialogue (1), then click the button at the right of the “Target” text field (2). A list of target categories appears, allowing to select the appropriate image:

When you have created your hyperlink, to reference it, do the following:

1. Write the hyperlink text you want, e.g. ‘please see the image on hand position’.
2. Select the part of the text which you want to make a hyperlink, e.g. ‘image on hand position’.
3. Open the hyperlink panel again; again click “Document” and the target button.
4. The new hyperlink will have a name beginning with hash (#), followed by the name you gave the image, but in all caps, a pipe (|) and the word figure (also in all caps); this is because the image gets renamed.
5. Select the chosen hyperlinked image, and your new hyperlink text goes straight to that image, not the caption.
