I have a Dell PowerEdge C6100, I’ve stripped out 3 of the nodes and I’m down to only using one. I’ve taken out 3 of the fans to reduce noise and left one fan for the single remaining node.

I would like to reduce the noise even further, I've been searching the internet and haven't found a very reliable source of information for this specific model.

This is a 2U server with dual power supplies, it currently has two 3.5" HDDs in it, and one node (with two quad core xeon CPUs and four sticks of 2GB DDR2 RAM that I’ve spaced out over the 8 memory slots to aid in cooling).

Any suggestions for reducing the noise level?

Hennes
  • 65,804
  • 7
  • 115
  • 169
user3546757
  • 23

1 Answers1

5

Yes it does take a fair amount of work to quiet the Dell C6100 Servers but has been done by many. Part of the challenge is the stock fans used by Dell are 13,500RPM PWM fans @ 72dba each and dell uses non-standard wiring.

  • L55xx L56xx Series Xeon CPUs use less power and make less heat you need to cool. Important when using slower quiet Fans (very inexpensive to buy Xeon L56xx CPUs on ebay)
  • Substitute San Ace or Supermicro fans, rewire non-standard fan headers to plug into the C6100
  • User RimBlock in that thread may still be selling drop in fan replacements

This website forum discusses using these servers for homelabs, here is one of many detailed threads on Taming the C6100 to be quiet.

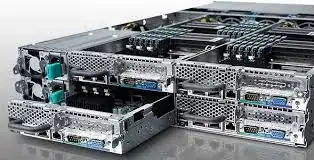

enter image description here

If you limit to one horizontal row of 1 or 2 nodes, you can also use much larger CPU heatsinks ~2U which makes it much easier to cool. Currently they use smaller than 1U heatsinks.
