What is the difference between gravity and layout_gravity in Android?

Question

I know we can set the following values to the android:gravity and android:layout_gravity properties:

center
center_vertical
center_horizontal, etc.

But I am confused regarding both of these.

What is the difference between the usage of android:gravity and android:layout_gravity?

Easy trick to remember: Take "layout-gravity" as "Lay-outside-gravity" — Vishnu Haridas, Dec 30 '11 at 09:22
These videos helped me a lot to understand the difference: https://www.youtube.com/watch?v=DxfYeAUd238 https://www.youtube.com/watch?v=1FyAIWLVcTc — Roni Castro, Oct 21 '16 at 05:16
**`ImageView`**'s seem to behave different than **`TextView`**'s. — samus, Aug 16 '17 at 16:42

score 1457 · Accepted Answer · edited Feb 08 '19 at 21:28

1457

Their names should help you:

android:gravity sets the gravity of the contents (i.e. its subviews) of the View it's used on.
android:layout_gravity sets the gravity of the View or Layout relative to its parent.

And an example is here.

edited Feb 08 '19 at 21:28

danronmoon

3,814
5
34
56

answered Aug 14 '10 at 09:31

Sephy

50,022
30
123
131

103

Basically, everything with `layout_` defines something that effects the elements outside. – Triang3l Jun 28 '13 at 10:26
38

See, I find this funny, because if I just go off the names, my intuition is the other way around. Every time, I think "layout_gravity" means "the gravity for how this ViewGroup lays out it's contents", and "gravity" is "where this View gravitates to". – Ogre Aug 09 '13 at 05:29
17

So what happens if the `android:gravity` is set to left and its children's `android:layout_gravity` is set to right? which side will the children align to? – Thupten Mar 28 '14 at 20:52
2

As @Suragch commented on his answer, layout_gravity only works in LinearLayout and FrameLayout. LinearLayout has constraints to it though. – Marco Luglio Jun 25 '15 at 05:49
1

@Thupten Very good question. I guess one will prevail (I guess the children's layout_gravity) and the other one is only the default for the prevailing one. – NoDataDumpNoContribution Dec 28 '15 at 09:30
Good answer but the example is wordy and confusing. The ideal answer would be this + the picture from @suragch's [answer](http://stackoverflow.com/a/26190050/620856) – Jonno Feb 25 '16 at 00:38
It hasn't been my experience....for a `TextView` that has no subviews, even if you set `textAlignment` as `center` but don't set `gravity`, the text will not be centred.... – Adam Burley Jun 22 '22 at 10:04

score 603 · Answer 2 · edited May 23 '17 at 12:10

Inside - Outside

gravity arranges the content inside the view.
layout_gravity arranges the view's position outside of itself.

Sometimes it helps to see a picture, too. The green and blue are TextViews and the other two background colors are LinearLayouts.

Notes

The layout_gravity does not work for views in a RelativeLayout. Use it for views in a LinearLayout or FrameLayout. See my supplemental answer for more details.
The view's width (or height) has to be greater than its content. Otherwise gravity won't have any effect. Thus, wrap_content and gravity are meaningless together.
The view's width (or height) has to be less than the parent. Otherwise layout_gravity won't have any effect. Thus, match_parent and layout_gravity are meaningless together.
The layout_gravity=center looks the same as layout_gravity=center_horizontal here because they are in a vertical linear layout. You can't center vertically in this case, so layout_gravity=center only centers horizontally.
This answer only dealt with setting gravity and layout_gravity on the views within a layout. To see what happens when you set the gravity of the of the parent layout itself, check out the supplemental answer that I referred to above. (Summary: gravity doesn't work well on a RelativeLayout but can be useful with a LinearLayout.)

So remember, layout_gravity arranges a view in its layout. Gravity arranges the content inside the view.

xml

Here is the xml for the above image for your reference:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:background="#e3e2ad"
        android:orientation="vertical" >

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_gravity="center_horizontal"
            android:textSize="24sp"
            android:text="gravity=" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:background="#bcf5b1"
            android:gravity="left"
            android:text="left" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:background="#aacaff"
            android:gravity="center_horizontal"
            android:text="center_horizontal" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:background="#bcf5b1"
            android:gravity="right"
            android:text="right" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:background="#aacaff"
            android:gravity="center"
            android:text="center" />

    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:background="#d6c6cd"
        android:orientation="vertical" >

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_gravity="center_horizontal"
            android:textSize="24sp"
            android:text="layout_gravity=" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:layout_gravity="left"
            android:background="#bcf5b1"
            android:text="left" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:layout_gravity="center_horizontal"
            android:background="#aacaff"
            android:text="center_horizontal" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:layout_gravity="right"
            android:background="#bcf5b1"
            android:text="right" />

        <TextView
            android:layout_width="200dp"
            android:layout_height="40dp"
            android:layout_gravity="center"
            android:background="#aacaff"
            android:text="center" />

    </LinearLayout>

</LinearLayout>

The difference

android:layout_gravity is the Outside gravity of the View. Specifies the direction in which the View should touch its parent's border.

android:gravity is the Inside gravity of that View. Specifies in which direction its contents should align.

HTML/CSS Equivalents

(if you are coming from a web development background)

Android                 | CSS
————————————————————————+————————————
android:layout_gravity  | float
android:gravity         | text-align

Easy trick to help you remember

Take layout-gravity as "Lay-outside-gravity".

it makes more sense when you have the web developement background. — Haritsinh Gohil, Oct 03 '19 at 07:18

score 43 · Answer 4 · edited Oct 29 '21 at 15:17

Short Answer: use android:gravity or setGravity() to control gravity of all child views of a container; use android:layout_gravity or setLayoutParams() to control gravity of an individual view in a container.

Long story: to control gravity in a linear layout container such as LinearLayout or RadioGroup, there are two approaches:

To control the gravity of ALL child views of a LinearLayout container (as you did in your book), use android:gravity (not android:layout_gravity) in layout XML file or setGravity() method in code.

To control the gravity of a child view in its container, use android:layout_gravity XML attribute. In code, one needs to get the LinearLayout.LayoutParams of the view and set its gravity. Here is a code example that set a button to bottom in a horizontally oriented container:

import android.widget.LinearLayout.LayoutParams;
import android.view.Gravity;
...

Button button = (Button) findViewById(R.id.MyButtonId);
// need to cast to LinearLayout.LayoutParams to access the gravity field
LayoutParams params = (LayoutParams)button.getLayoutParams();
params.gravity = Gravity.BOTTOM;
button.setLayoutParams(params);

For horizontal LinearLayout container, the horizontal gravity of its child view is left-aligned one after another and cannot be changed. Setting android:layout_gravity to center_horizontal has no effect. The default vertical gravity is center (or center_vertical) and can be changed to top or bottom. Actually the default layout_gravity value is -1 but Android put it center vertically.

To change the horizontal positions of child views in a horizontal linear container, one can use layout_weight, margin and padding of the child view.

Similarly, for vertical View Group container, the vertical gravity of its child view is top-aligned one below another and cannot be changed. The default horizontal gravity is center (or center_horizontal) and can be changed to left or right.

Actually, a child view such as a button also has android:gravity XML attribute and the setGravity() method to control its child views -- the text in it. The Button.setGravity(int) is linked to this developer.android.com entry.

score 38 · Answer 5 · answered Aug 14 '10 at 09:37

38

From what I can gather layout_gravity is the gravity of that view inside its parent, and gravity is the gravity of the children inside that view.

I think this is right but the best way to find out is to play around.

answered Aug 14 '10 at 09:37

matto1990

3,766
2
27
32

score 30 · Answer 6 · answered Feb 04 '15 at 07:17

30

Look at the image to be clear about gravity

answered Feb 04 '15 at 07:17

Akshay Paliwal

3,718
2
39
43

score 15 · Answer 7 · edited Oct 31 '21 at 22:59

15

If we want to set the gravity of content inside a view then we will use "android:gravity", and if we want to set the gravity of this view (as a whole) with in its parent view then we will use "android:layout_gravity".

edited Oct 31 '21 at 22:59

Arbaz_Ali

53
10

answered Apr 09 '13 at 21:21

Abhishek Tamta

463
5
14

score 9 · Answer 8 · edited Oct 31 '21 at 05:09

9

Just thought I'd add my own explanation here - coming from a background on iOS, this is how I've internalized the two in iOS terms:

Layout Gravity affects your position in the superview. Gravity affects the position of your subviews within you.

Said another way, Layout Gravity positions you yourself while Gravity positions your children.

edited Oct 31 '21 at 05:09

Arbaz_Ali

53
10

answered Apr 15 '15 at 20:56

mszaro

1,362
1
13
25

Mahendra Liya · Answer 9 · 2018-09-24T11:53:07.073

9

An easy trick to remember this is gravity applies to us inside earth. So, android:gravity is for inside the view.

Rememeber the out in layout_gravity which would help you to remember that android:layout_gravity would refer to outside the view

edited Sep 24 '18 at 11:53

answered Nov 29 '16 at 08:41

Mahendra Liya

12,912
14
88
114

score 7 · Answer 10 · answered Oct 17 '16 at 06:48

There is many difference in the gravity and layout-gravity. I am going to explain my experience about these 2 concepts(All information i got due to my observation and some websites).

Use Of Gravity and Layout-gravity in FrameLayout .....

Note:-

Gravity is used inside the View Content as some User have answer and it is same for all ViewGroup Layout.
Layout-gravity is used with the parent View as some User have answer.
Gravity and Layout-gravity is work more useful with the FrameLayout childs . We can't use Gravity and Layout-gravity in FrameLayout's Tag ....
We can set Child View any where in the FrameLayout using layout-gravity .
We can use every single value of gravity inside the FrameLayout (eg:- center_vertical, center_horizontal, center,top, etc), but it is not possible with other ViewGroup Layouts .
FrameLayout fully working on Layout-gravity. Example:- If you work on FrameLayout then you don't need to change whole Layout for adding new View. You just add View as last in the FrameLayout and give him Layout-gravity with value.(This is adavantages of layout-gravity with FrameLayout).

have look on example ......

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:layout_width="match_parent"
        android:layout_height="100dp"
        android:textSize="25dp"
        android:background="#000"
        android:textColor="#264bd1"
        android:gravity="center"
        android:layout_gravity="center"
        android:text="Center Layout Gravity"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="80dp"
        android:textSize="25dp"
        android:background="#000"
        android:textColor="#1b64b9"
        android:gravity="bottom"
        android:layout_gravity="bottom|center"
        android:text="Bottom Layout Gravity" />

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="80dp"
        android:textSize="25dp"
        android:background="#000"
        android:textColor="#d75d1c"
        android:gravity="top"
        android:layout_gravity="top|center"
        android:text="Top Layout Gravity"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="80dp"
        android:textSize="25dp"
        android:background="#000"
        android:layout_marginTop="100dp"
        android:textColor="#d71f1c"
        android:gravity="top|right"
        android:layout_gravity="top|right"
        android:text="Top Right Layout Gravity"/>


    <TextView
        android:layout_width="wrap_content"
        android:layout_height="80dp"
        android:textSize="25dp"
        android:background="#000"
        android:layout_marginBottom="100dp"
        android:textColor="#d71cb2"
        android:layout_gravity="bottom"
        android:gravity="bottom"
        android:text="Top Left Layout Gravity"/>

</FrameLayout>

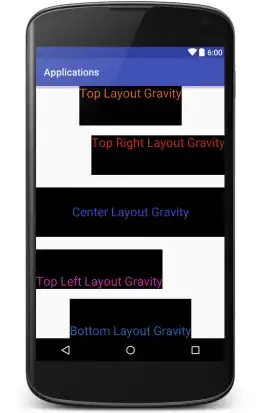

Output:-

Use Of Gravity and Layout-gravity in LinearLayout .....

Gravity working same as above but here differnce is that we can use Gravity inside the LinearLayout View and RelativeLayout View which is not possible in FrameLayout View.

LinearLayout with orientation vertical ....

Note:- Here we can set only 3 values of layout_gravity that is (left | right | center (also called center_horizontal)).

have look on example :-

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="100dp"
        android:textSize="25dp"
        android:background="#000"
        android:textColor="#264bd1"
        android:gravity="center"
        android:layout_gravity="center_horizontal"
        android:text="Center Layout Gravity \nor \nCenter_Horizontal"/>

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="80dp"
        android:textSize="25dp"
        android:background="#000"
        android:layout_marginTop="20dp"
        android:textColor="#d75d1c"
        android:layout_gravity="right"
        android:text="Right Layout Gravity"/>


    <TextView
        android:layout_width="wrap_content"
        android:layout_height="80dp"
        android:textSize="25dp"
        android:background="#000"
        android:layout_marginBottom="100dp"
        android:textColor="#d71cb2"
        android:layout_gravity="left"
        android:layout_marginTop="20dp"
        android:gravity="bottom"
        android:text="Left Layout Gravity"/>

</LinearLayout>

Output:-

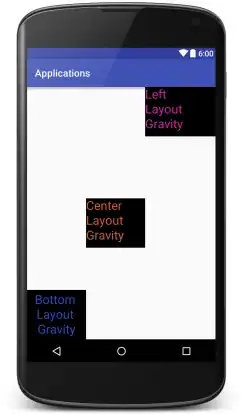

LinearLayout with orientation horizontal ....

Note:- Here we can set also 3 values of layout_gravity that is (top | bottom | center (also called center_vertical)).

have look on example :-

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="horizontal"
    android:layout_height="match_parent">

    <TextView
        android:layout_width="120dp"
        android:layout_height="100dp"
        android:textSize="25dp"
        android:background="#000"
        android:textColor="#264bd1"
        android:gravity="center"
        android:layout_gravity="bottom"
        android:text="Bottom \nLayout \nGravity"/>

    <TextView
        android:layout_width="120dp"
        android:layout_height="100dp"
        android:textSize="25dp"
        android:background="#000"
        android:layout_marginTop="20dp"
        android:textColor="#d75d1c"
        android:layout_gravity="center"
        android:text="Center \nLayout \nGravity"/>


    <TextView
        android:layout_width="150dp"
        android:layout_height="100dp"
        android:textSize="25dp"
        android:background="#000"
        android:layout_marginBottom="100dp"
        android:textColor="#d71cb2"
        android:layout_gravity="left"
        android:layout_marginTop="20dp"
        android:text="Left \nLayout \nGravity"/>

</LinearLayout>

output:-

Note:- We can't use layout_gravity in the RelativeLayout Views but we can use gravity to set RelativeLayout childs to same position....

If you set `textColor` white in all `view` then it would be very great. :D — Pratik Butani, Feb 06 '19 at 08:47
Are you sure? It will look black and white that's why i used different color for every View. — sushildlh, Feb 06 '19 at 09:54

score 5 · Answer 11 · edited Apr 20 '15 at 15:51

Something I saw on Sandip's blog that I almost missed, fixed my problem. He said layout_gravity DOES NOT WORK WITH LinearLayout.

If you're using a LinearLayout and the gravity settings are driving you nuts (like me), then switch to something else.

I actually switched to a RelativeLayout then used layout_alignParentLeft and layout_alignParentRight on the 2 contained TextViews to get them on one line to go far left and far right.

Abhishek T. · Answer 12 · 2016-09-15T15:23:43.480

4

The basic difference between the two is that-

android:gravity is used for child elements of the view.

android:layout_gravity is used for this element with respect to parent view.

edited Sep 15 '16 at 15:23

answered Jul 26 '16 at 14:43

Abhishek T.

1,133
1
17
33

score 3 · Answer 13 · answered May 10 '15 at 12:17

3

android:gravity is used to specify how to place the content of the object within the object itself. In another word, android:gravity is used to specify the gravity of the content of the view.

android:layout_gravity is an attribution the child can supply to its parent, to specify the gravity the view within its parents.

For more details you can visit

http://developer.android.com/reference/android/widget/LinearLayout.LayoutParams.html

answered May 10 '15 at 12:17

IntelliJ Amiya

74,896
15
165
198

2

I think no need of new answer as there are multiple answers already posted and with almost the same contents covered! – Paresh Mayani May 10 '15 at 13:56

score 3 · Answer 14 · answered Apr 30 '18 at 10:36

Gravity: Allow you move the content inside a container. (How sub-views will be placed).

Important: (MOVE along X-axis or Y-axis within available space).

Example: Let's say if you were to work with LinearLayout (Height: match_parent, Width: match_parent) as root level element, then you will have full frame space available; and the child views says 2 TextViews (Height: wrap_content, Width: wrap_content) inside the LinearLayout can be moved around along x/y axis using corresponding values for gravity on parent.

Layout_Gravity: Allow you to override the parent gravity behavior ONLY along x-axis.

Important: (MOVE[override] along X-axis within available space).

Example: If you keep in mind the previous example, we know gravity enabled us to move along x/y axis, i.e; the place TextViews inside LinearLayout. Let's just say LinearLayout specifies gravity: center; meaning every TextView needs to be center both vertically and horizontally. Now if we want one of the TextView to go left/right, we can override the specified gravity behavior using layout_gravity on the TextView.

Bonus: if you dig deeper, you will find out that text within the TextView act as sub-view; so if you apply the gravity on TextView, the text inside the TextView will move around. (the entire concept apply here too)

score 1 · Answer 15 · answered May 17 '17 at 18:15

Gravity is used to set text alignment in views but layout_gravity is use to set views it self. Lets take an example if you want to align text written in editText then use gravity and you want align this editText or any button or any view then use layout_gravity, So its very simple.

score 1 · Answer 16 · edited Feb 07 '18 at 12:27

1

gravity: is used for simple views like textview, edittext etc.

layout_gravity: is used for current view only gravity in context of it's relative parent view like linear Layout or FrameLayout to make view in center or any other gravity of its parent.

edited Feb 07 '18 at 12:27

Chintak Patel

748
6
24

answered Jun 01 '17 at 11:32

Mayank Garg

1,284
1
11
23

layout_gravity: is used for current view only gravity in context of it's relative parent, not other views which is inside of it's parent. – Chintak Patel Feb 07 '18 at 10:12

score 1 · Answer 17 · answered Apr 23 '20 at 05:27

1

The android:gravity sets the gravity (position) of the children whereas the android:layout_gravity sets the position of the view itself. Hope it helps

answered Apr 23 '20 at 05:27

Joel

353
2
7

score 0 · Answer 18 · answered Jan 02 '17 at 12:13

android:gravity

is used to adjust for content of the view relative to its specify position (allocated area). android:gravity="left" would not do anything if layout_width is equal to the "wrap_content"

android:layout_gravity

is used for view itself relative to the parent or layout file.

score 0 · Answer 19 · answered Jul 12 '17 at 17:10

0

android:gravity -> Sets the gravity of the content of the View its used on.

android:layout_gravity -> Sets the gravity of it's Parent's view or Layout

answered Jul 12 '17 at 17:10

Vamsi

878
1
8
25

score 0 · Answer 20 · answered Nov 13 '18 at 10:07

0

gravity--Applies to its own view.

layout-gravity---Applies to view related to its parent.

answered Nov 13 '18 at 10:07

nidhi

337
1
16

score 0 · Answer 21 · answered Oct 29 '21 at 06:13

Gravity and layout_gravity both are the XML attributes.

The android:gravity attribute is used to arrange the position of the content inside a view (for example text inside a Button widget).

The android:layout_gravity is used to arrange the position of the entire View relative to it’s container.

For further details you can see this link.

score 0 · Answer 22 · answered Mar 28 '23 at 10:24

android:gravity handles the alignment of its children, it sets the gravity of the content of the View it’s used on. In other words it just focuses on the centering of all child views in the parent view. So it works better on a parent view.

android:layout_gravity handles the alignment of itself, it sets the gravity of the View or Layout relative to its parent. In other words it focuses on centering a specific child view in the parent view. So it works better on the child view you want centralized.

What is the difference between gravity and layout_gravity in Android?

22 Answers22

Notes

xml

Related

The difference

HTML/CSS Equivalents

Easy trick to help you remember

Linked

Related
