How to Access Hidden Power and Processor Options in Windows 10

Question

What means are there to access and change hidden power and processor options in Windows 10?

• A way to find information on hidden globally unique identifier (GUID) power and processor options.
• A way to configure them for testing purposes.

---

The following elevated CMD command only shows visible GUID's from the power options window:

powercfg /q

There seemed to be a discrepancy with normal powercfg exports on the net and tweaked configurations posts and full powercfg posts. The general lack of complete documentation about these things, the fact that the Microsoft PowerCfg documentation doesn't explain this, is the reason for this question. This is also an extension of core parking answer here.

Answer 1

Reviewing Hidden Power GUID Options in Windows 10

1. Run elevated cmd, compare results by exporting:

    powercfg /Q >%UserProfile%\Desktop\PowerPlanSettings.txt
   powercfg /Qh >%UserProfile%\Desktop\PowerPlanSettingsHidden.txt

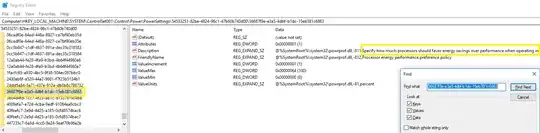

2. Find more information on hidden GUID in question by searching the registry.

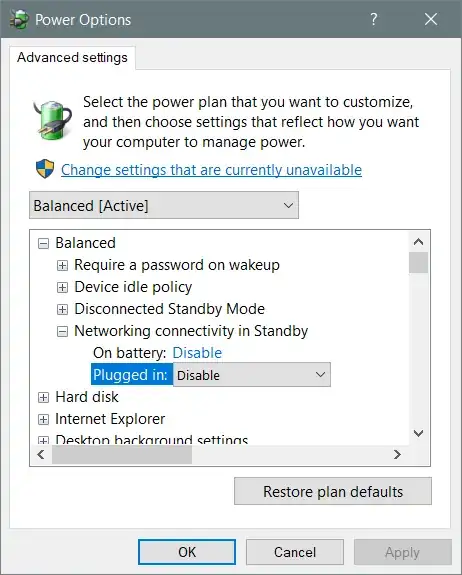

3. To unhide GUID use the following format in elevated cmd, be sure to use sub group heading also, this will make it visible in the power options window, replace the sub group and GUID with the one from the /Qh log:

Command Layout:

    powercfg -attributes SUB-GROUP GUID -ATTRIB_HIDE

Command Example:

    powercfg -attributes SUB_PROCESSOR 8baa4a8a-14c6-4451-8e8b-14bdbd197537 -ATTRIB_HIDE

4. To rehide GUID use the following format commands in elevated cmd. Replace the sub group and GUID again.

Command Layout:

    powercfg -attributes SUB-GROUP GUID +ATTRIB_HIDE

Command Example:

    powercfg -attributes SUB_PROCESSOR 8baa4a8a-14c6-4451-8e8b-14bdbd197537 +ATTRIB_HIDE

5. (WARNING: read user comments at end first, one user has had difficulties using this script) Can backup powerplan then run powershell as admin, then run the Set-ExecutionPolicy Bypass and use a script from GitHub to show all possible power config GUIDs in Windows using elevated Powershell:

# List all possible power config GUIDs in Windows
# Run: this-script.ps1 | Out-File powercfg.ps1
# Then edit and run powercfg.ps1
# (c) Pekka "raspi" Järvinen 2017

$powerSettingTable = Get-WmiObject -Namespace root\cimv2\power -Class Win32_PowerSetting
$powerSettingInSubgroubTable = Get-WmiObject -Namespace root\cimv2\power -Class Win32_PowerSettingInSubgroup
Get-WmiObject -Namespace root\cimv2\power -Class Win32_PowerSettingCapabilities | ForEach-Object {
  $tmp = $_.ManagedElement
  $tmp = $tmp.Remove(0, $tmp.LastIndexOf('{') + 1)
  $tmp = $tmp.Remove($tmp.LastIndexOf('}'))
$guid = $tmp
$s = ($powerSettingInSubgroubTable | Where-Object PartComponent -Match "$guid")
if (!$s) {
    return
  }
$tmp = $s.GroupComponent
  $tmp = $tmp.Remove(0, $tmp.LastIndexOf('{') + 1)
  $tmp = $tmp.Remove($tmp.LastIndexOf('}'))
$groupguid = $tmp
$s = ($powerSettingTable | Where-Object InstanceID -Match "$guid")
$descr = [string]::Format("# {0}", $s.ElementName)
  $runcfg = [string]::Format("powercfg -attributes {0} {1} -ATTRIB_HIDE", $groupguid, $guid)
Write-Output $descr
  Write-Output $runcfg
  Write-Output ""
}

Place in a text file and save as .ps1 file, then go to that folder in powershell and run the ./filename.ps1

Once output is printed run in PS admin run: Set-ExecutionPolicy Restricted to lock powershell again.

GitHub Source

• Run: ./this-script.ps1

Example Output: (Just Follow Sections 3 and 4 to Change the Output file as desired)

# AHCI Link Power Management - HIPM/DIPM
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 0b2d69d7-a2a1-449c-9680-f91c70521c60 -ATTRIB_HIDE
Maximum Power Level
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 51dea550-bb38-4bc4-991b-eacf37be5ec8 -ATTRIB_HIDE
Turn off hard disk after
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 6738e2c4-e8a5-4a42-b16a-e040e769756e -ATTRIB_HIDE
Hard disk burst ignore time
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 80e3c60e-bb94-4ad8-bbe0-0d3195efc663 -ATTRIB_HIDE
Secondary NVMe Idle Timeout
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 d3d55efd-c1ff-424e-9dc3-441be7833010 -ATTRIB_HIDE
Primary NVMe Idle Timeout
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 d639518a-e56d-4345-8af2-b9f32fb26109 -ATTRIB_HIDE
AHCI Link Power Management - Adaptive
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 dab60367-53fe-4fbc-825e-521d069d2456 -ATTRIB_HIDE
Secondary NVMe Power State Transition Latency Tolerance
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 dbc9e238-6de9-49e3-92cd-8c2b4946b472 -ATTRIB_HIDE
Primary NVMe Power State Transition Latency Tolerance
powercfg -attributes 0012ee47-9041-4b5d-9b77-535fba8b1442 fc95af4d-40e7-4b6d-835a-56d131dbc80e -ATTRIB_HIDE
JavaScript Timer Frequency
powercfg -attributes 02f815b5-a5cf-4c84-bf20-649d1f75d3d8 4c793e7d-a264-42e1-87d3-7a0d2f523ccd -ATTRIB_HIDE
Slide show
powercfg -attributes 0d7dbae2-4294-402a-ba8e-26777e8488cd 309dce9b-bef4-4119-9921-a851fb12f0f4 -ATTRIB_HIDE
Power Saving Mode
powercfg -attributes 19cbb8fa-5279-450e-9fac-8a3d5fedd0c1 12bbebe6-58d6-4636-95bb-3217ef867c1a -ATTRIB_HIDE
Legacy RTC mitigations
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 1a34bdc3-7e6b-442e-a9d0-64b6ef378e84 -ATTRIB_HIDE
Allow Away Mode Policy
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 25dfa149-5dd1-4736-b5ab-e8a37b5b8187 -ATTRIB_HIDE
Sleep after
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 29f6c1db-86da-48c5-9fdb-f2b67b1f44da -ATTRIB_HIDE
System unattended sleep timeout
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 7bc4a2f9-d8fc-4469-b07b-33eb785aaca0 -ATTRIB_HIDE
Allow hybrid sleep
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 94ac6d29-73ce-41a6-809f-6363ba21b47e -ATTRIB_HIDE
Hibernate after
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 9d7815a6-7ee4-497e-8888-515a05f02364 -ATTRIB_HIDE
Allow system required policy
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 a4b195f5-8225-47d8-8012-9d41369786e2 -ATTRIB_HIDE
Allow Standby States
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 abfc2519-3608-4c2a-94ea-171b0ed546ab -ATTRIB_HIDE
Allow wake timers
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 bd3b718a-0680-4d9d-8ab2-e1d2b4ac806d -ATTRIB_HIDE
Allow sleep with remote opens
powercfg -attributes 238c9fa8-0aad-41ed-83f4-97be242c8f20 d4c1d4c8-d5cc-43d3-b83e-fc51215cb04d -ATTRIB_HIDE
Hub Selective Suspend Timeout
powercfg -attributes 2a737441-1930-4402-8d77-b2bebba308a3 0853a681-27c8-4100-a2fd-82013e970683 -ATTRIB_HIDE
USB selective suspend setting
powercfg -attributes 2a737441-1930-4402-8d77-b2bebba308a3 48e6b7a6-50f5-4782-a5d4-53bb8f07e226 -ATTRIB_HIDE
Setting IOC on all TDs
powercfg -attributes 2a737441-1930-4402-8d77-b2bebba308a3 498c044a-201b-4631-a522-5c744ed4e678 -ATTRIB_HIDE
USB 3 Link Power Mangement
powercfg -attributes 2a737441-1930-4402-8d77-b2bebba308a3 d4e98f31-5ffe-4ce1-be31-1b38b384c009 -ATTRIB_HIDE
Execution Required power request time-out
powercfg -attributes 2e601130-5351-4d9d-8e04-252966bad054 3166bc41-7e98-4e03-b34e-ec0f5f2b218e -ATTRIB_HIDE
IO coalescing time-out
powercfg -attributes 2e601130-5351-4d9d-8e04-252966bad054 c36f0eb4-2988-4a70-8eee-0884fc2c2433 -ATTRIB_HIDE
Processor Idle Resiliency Timer Resolution
powercfg -attributes 2e601130-5351-4d9d-8e04-252966bad054 c42b79aa-aa3a-484b-a98f-2cf32aa90a28 -ATTRIB_HIDE
Deep Sleep Enabled/Disabled
powercfg -attributes 2e601130-5351-4d9d-8e04-252966bad054 d502f7ee-1dc7-4efd-a55d-f04b6f5c0545 -ATTRIB_HIDE
Intel(R) Graphics Power Plan
powercfg -attributes 44f3beca-a7c0-460e-9df2-bb8b99e0cba6 3619c3f2-afb2-4afc-b0e9-e7fef372de36 -ATTRIB_HIDE
Interrupt Steering Mode
powercfg -attributes 48672f38-7a9a-4bb2-8bf8-3d85be19de4e 2bfc24f9-5ea2-4801-8213-3dbae01aa39d -ATTRIB_HIDE
Target Load
powercfg -attributes 48672f38-7a9a-4bb2-8bf8-3d85be19de4e 73cde64d-d720-4bb2-a860-c755afe77ef2 -ATTRIB_HIDE
Unparked time trigger
powercfg -attributes 48672f38-7a9a-4bb2-8bf8-3d85be19de4e d6ba4903-386f-4c2c-8adb-5c21b3328d25 -ATTRIB_HIDE
Lid close action
powercfg -attributes 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 -ATTRIB_HIDE
Power button action
powercfg -attributes 4f971e89-eebd-4455-a8de-9e59040e7347 7648efa3-dd9c-4e3e-b566-50f929386280 -ATTRIB_HIDE
Enable forced button/lid shut-down
powercfg -attributes 4f971e89-eebd-4455-a8de-9e59040e7347 833a6b62-dfa4-46d1-82f8-e09e34d029d6 -ATTRIB_HIDE
Sleep button action
powercfg -attributes 4f971e89-eebd-4455-a8de-9e59040e7347 96996bc0-ad50-47ec-923b-6f41874dd9eb -ATTRIB_HIDE
Lid open action
powercfg -attributes 4f971e89-eebd-4455-a8de-9e59040e7347 99ff10e7-23b1-4c07-a9d1-5c3206d741b4 -ATTRIB_HIDE
Start menu power button
powercfg -attributes 4f971e89-eebd-4455-a8de-9e59040e7347 a7066653-8d6c-40a8-910e-a1f54b84c7e5 -ATTRIB_HIDE
Link State Power Management
powercfg -attributes 501a4d13-42af-4429-9fd1-a8218c268e20 ee12f906-d277-404b-b6da-e5fa1a576df5 -ATTRIB_HIDE
Processor performance increase threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 06cadf0e-64ed-448a-8927-ce7bf90eb35d -ATTRIB_HIDE
Processor performance increase threshold for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 06cadf0e-64ed-448a-8927-ce7bf90eb35e -ATTRIB_HIDE
Processor performance core parking min cores
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 0cc5b647-c1df-4637-891a-dec35c318583 -ATTRIB_HIDE
Processor performance core parking min. cores for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 0cc5b647-c1df-4637-891a-dec35c318584 -ATTRIB_HIDE
Processor performance decrease threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 12a0ab44-fe28-4fa9-b3bd-4b64f44960a6 -ATTRIB_HIDE
Processor performance decrease threshold for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 12a0ab44-fe28-4fa9-b3bd-4b64f44960a7 -ATTRIB_HIDE
Initial performance for Processor Power Efficiency Class 1 when unparked
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 1facfc65-a930-4bc5-9f38-504ec097bbc0 -ATTRIB_HIDE
Processor performance core parking concurrency threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 2430ab6f-a520-44a2-9601-f7f23b5134b1 -ATTRIB_HIDE
Processor performance core parking increase time
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 2ddd5a84-5a71-437e-912a-db0b8c788732 -ATTRIB_HIDE
Processor energy performance preference policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 36687f9e-e3a5-4dbf-b1dc-15eb381c6863 -ATTRIB_HIDE
Allow Throttle States
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 3b04d4fd-1cc7-4f23-ab1c-d1337819c4bb -ATTRIB_HIDE
Processor performance increase time for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 4009efa7-e72d-4cba-9edf-91084ea8cbc3 -ATTRIB_HIDE
Processor performance decrease policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 40fbefc7-2e9d-4d25-a185-0cfd8574bac6 -ATTRIB_HIDE
Processor performance decrease policy for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 40fbefc7-2e9d-4d25-a185-0cfd8574bac7 -ATTRIB_HIDE
Processor performance core parking parked performance state
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 447235c7-6a8d-4cc0-8e24-9eaf70b96e2b -ATTRIB_HIDE
Processor performance core parking parked performance state for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 447235c7-6a8d-4cc0-8e24-9eaf70b96e2c -ATTRIB_HIDE
Processor performance boost policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 45bcc044-d885-43e2-8605-ee0ec6e96b59 -ATTRIB_HIDE
Processor performance increase policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 465e1f50-b610-473a-ab58-00d1077dc418 -ATTRIB_HIDE
Processor performance increase policy for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 465e1f50-b610-473a-ab58-00d1077dc419 -ATTRIB_HIDE
Processor idle demote threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 4b92d758-5a24-4851-a470-815d78aee119 -ATTRIB_HIDE
Processor performance core parking distribution threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 4bdaf4e9-d103-46d7-a5f0-6280121616ef -ATTRIB_HIDE
Processor performance time check interval
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 4d2b0152-7d5c-498b-88e2-34345392a2c5 -ATTRIB_HIDE
Processor duty cycling
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 4e4450b3-6179-4e91-b8f1-5bb9938f81a1 -ATTRIB_HIDE
Processor idle disable
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 5d76a2ca-e8c0-402f-a133-2158492d58ad -ATTRIB_HIDE
Latency sensitivity hint min. unparked cores/packages
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 616cdaa5-695e-4545-97ad-97dc2d1bdd88 -ATTRIB_HIDE
Latency sensitivity hint min. unparked cores/packages for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 616cdaa5-695e-4545-97ad-97dc2d1bdd89 -ATTRIB_HIDE
Latency sensitivity hint processor performance
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 619b7505-003b-4e82-b7a6-4dd29c300971 -ATTRIB_HIDE
Latency sensitivity hint processor performance for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 619b7505-003b-4e82-b7a6-4dd29c300972 -ATTRIB_HIDE
Processor idle threshold scaling
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 6c2993b0-8f48-481f-bcc6-00dd2742aa06 -ATTRIB_HIDE
Processor performance core parking decrease policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 71021b41-c749-4d21-be74-a00f335d582b -ATTRIB_HIDE
Maximum processor frequency
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 75b0ae3f-bce0-45a7-8c89-c9611c25e100 -ATTRIB_HIDE
Maximum processor frequency for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 75b0ae3f-bce0-45a7-8c89-c9611c25e101 -ATTRIB_HIDE
Processor idle promote threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 7b224883-b3cc-4d79-819f-8374152cbe7c -ATTRIB_HIDE
Processor performance history count
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 7d24baa7-0b84-480f-840c-1b0743c00f5f -ATTRIB_HIDE
Processor performance history count for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 7d24baa7-0b84-480f-840c-1b0743c00f60 -ATTRIB_HIDE
Processor performance decrease time for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 7f2492b6-60b1-45e5-ae55-773f8cd5caec -ATTRIB_HIDE
Heterogeneous policy in effect
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 7f2f5cfa-f10c-4823-b5e1-e93ae85f46b5 -ATTRIB_HIDE
Minimum processor state
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 893dee8e-2bef-41e0-89c6-b55d0929964c -ATTRIB_HIDE
Minimum processor state for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 893dee8e-2bef-41e0-89c6-b55d0929964d -ATTRIB_HIDE
Processor performance autonomous mode
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 8baa4a8a-14c6-4451-8e8b-14bdbd197537 -ATTRIB_HIDE
Heterogeneous thread scheduling policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 93b8b6dc-0698-4d1c-9ee4-0644e900c85d -ATTRIB_HIDE
Processor performance core parking over-utilisation threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 943c8cb6-6f93-4227-ad87-e9a3feec08d1 -ATTRIB_HIDE
System cooling policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 94d3a615-a899-4ac5-ae2b-e4d8f634367f -ATTRIB_HIDE
Processor performance increase time
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 984cf492-3bed-4488-a8f9-4286c97bf5aa -ATTRIB_HIDE
Processor performance increase time for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 984cf492-3bed-4488-a8f9-4286c97bf5ab -ATTRIB_HIDE
Processor idle state maximum
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 9943e905-9a30-4ec1-9b99-44dd3b76f7a2 -ATTRIB_HIDE
Processor performance level increase threshold for Processor Power Efficiency Class 1 processor count increase
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 b000397d-9b0b-483d-98c9-692a6060cfbf -ATTRIB_HIDE
Heterogeneous short running thread scheduling policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 bae08b81-2d5e-4688-ad6a-13243356654b -ATTRIB_HIDE
Maximum processor state
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 bc5038f7-23e0-4960-96da-33abaf5935ec -ATTRIB_HIDE
Maximum processor state for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 bc5038f7-23e0-4960-96da-33abaf5935ed -ATTRIB_HIDE
Processor performance boost mode
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 be337238-0d82-4146-a960-4f3749d470c7 -ATTRIB_HIDE
Processor idle time check
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 c4581c31-89ab-4597-8e2b-9c9cab440e6b -ATTRIB_HIDE
Processor performance core parking increase policy
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 c7be0679-2817-4d69-9d02-519a537ed0c6 -ATTRIB_HIDE
Processor autonomous activity window
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 cfeda3d0-7697-4566-a922-a9086cd49dfa -ATTRIB_HIDE
Processor performance decrease time
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 d8edeb9b-95cf-4f95-a73c-b061973693c8 -ATTRIB_HIDE
Processor performance decrease time for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 d8edeb9b-95cf-4f95-a73c-b061973693c9 -ATTRIB_HIDE
Processor performance core parking decrease time
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 dfd10d17-d5eb-45dd-877a-9a34ddd15c82 -ATTRIB_HIDE
Processor performance core parking utility distribution
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 e0007330-f589-42ed-a401-5ddb10e785d3 -ATTRIB_HIDE
Processor performance core parking max cores
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 ea062031-0e34-4ff1-9b6d-eb1059334028 -ATTRIB_HIDE
Processor performance core parking max. cores for Processor Power Efficiency Class 1
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 ea062031-0e34-4ff1-9b6d-eb1059334029 -ATTRIB_HIDE
Processor performance core parking concurrency headroom threshold
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 f735a673-2066-4f80-a0c5-ddee0cf1bf5d -ATTRIB_HIDE
Processor performance level decrease threshold for Processor Power Efficiency Class 1 processor count decrease
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 f8861c27-95e7-475c-865b-13c0cb3f9d6b -ATTRIB_HIDE
A floor performance for Processor Power Efficiency Class 0 when there are Processor Power Efficiency Class 1 processors unparked
powercfg -attributes 54533251-82be-4824-96c1-47b60b740d00 fddc842b-8364-4edc-94cf-c17f60de1c80 -ATTRIB_HIDE
GPU preference policy
powercfg -attributes 5fb4938d-1ee8-4b0f-9a3c-5036b0ab995c dd848b2a-8a5d-4451-9ae2-39cd41658f6c -ATTRIB_HIDE
Dim display after
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 17aaa29b-8b43-4b94-aafe-35f64daaf1ee -ATTRIB_HIDE
Turn off display after
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 3c0bc021-c8a8-4e07-a973-6b14cbcb2b7e -ATTRIB_HIDE
Console lock display off time-out
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 8ec4b3a5-6868-48c2-be75-4f3044be88a7 -ATTRIB_HIDE
Adaptive display
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 90959d22-d6a1-49b9-af93-bce885ad335b -ATTRIB_HIDE
Allow display required policy
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 a9ceb8da-cd46-44fb-a98b-02af69de4623 -ATTRIB_HIDE
Display brightness
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 aded5e82-b909-4619-9949-f5d71dac0bcb -ATTRIB_HIDE
Dimmed display brightness
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 f1fbfde2-a960-4165-9f88-50667911ce96 -ATTRIB_HIDE
Enable adaptive brightness
powercfg -attributes 7516b95f-f776-4464-8c53-06167f40cc99 fbd9aa66-9553-4097-ba44-ed6e9d65eab8 -ATTRIB_HIDE
Standby Reserve Time
powercfg -attributes 8619b916-e004-4dd8-9b66-dae86f806698 468fe7e5-1158-46ec-88bc-5b96c9e44fd0 -ATTRIB_HIDE
Standby Reset Percentage
powercfg -attributes 8619b916-e004-4dd8-9b66-dae86f806698 49cb11a5-56e2-4afb-9d38-3df47872e21b -ATTRIB_HIDE
Non-sensor Input Presence Time-out
powercfg -attributes 8619b916-e004-4dd8-9b66-dae86f806698 5adbbfbc-074e-4da1-ba38-db8b36b2c8f3 -ATTRIB_HIDE
Standby Budget Grace Period
powercfg -attributes 8619b916-e004-4dd8-9b66-dae86f806698 60c07fe1-0556-45cf-9903-d56e32210242 -ATTRIB_HIDE
User Presence Prediction mode
powercfg -attributes 8619b916-e004-4dd8-9b66-dae86f806698 82011705-fb95-4d46-8d35-4042b1d20def -ATTRIB_HIDE
Standby Budget Per Cent
powercfg -attributes 8619b916-e004-4dd8-9b66-dae86f806698 9fe527be-1b70-48da-930d-7bcf17b44990 -ATTRIB_HIDE
Standby Reserve Grace Period
powercfg -attributes 8619b916-e004-4dd8-9b66-dae86f806698 c763ee92-71e8-4127-84eb-f6ed043a3e3d -ATTRIB_HIDE
When sharing media
powercfg -attributes 9596fb26-9850-41fd-ac3e-f7c3c00afd4b 03680956-93bc-4294-bba6-4e0f09bb717f -ATTRIB_HIDE
Video playback quality bias.
powercfg -attributes 9596fb26-9850-41fd-ac3e-f7c3c00afd4b 10778347-1370-4ee0-8bbd-33bdacaade49 -ATTRIB_HIDE
When playing video
powercfg -attributes 9596fb26-9850-41fd-ac3e-f7c3c00afd4b 34c7b99f-9a6d-4b3c-8dc7-b6693b78cef4 -ATTRIB_HIDE
Display brightness weight
powercfg -attributes de830923-a562-41af-a086-e3a2c6bad2da 13d09884-f74e-474a-a852-b6bde8ad03a8 -ATTRIB_HIDE
Energy Saver Policy
powercfg -attributes de830923-a562-41af-a086-e3a2c6bad2da 5c5bb349-ad29-4ee2-9d0b-2b25270f7a81 -ATTRIB_HIDE
Charge level
powercfg -attributes de830923-a562-41af-a086-e3a2c6bad2da e69653ca-cf7f-4f05-aa73-cb833fa90ad4 -ATTRIB_HIDE
Critical battery notification
powercfg -attributes e73a048d-bf27-4f12-9731-8b2076e8891f 5dbb7c9f-38e9-40d2-9749-4f8a0e9f640f -ATTRIB_HIDE
Critical battery action
powercfg -attributes e73a048d-bf27-4f12-9731-8b2076e8891f 637ea02f-bbcb-4015-8e2c-a1c7b9c0b546 -ATTRIB_HIDE
Low battery level
powercfg -attributes e73a048d-bf27-4f12-9731-8b2076e8891f 8183ba9a-e910-48da-8769-14ae6dc1170a -ATTRIB_HIDE
Critical battery level
powercfg -attributes e73a048d-bf27-4f12-9731-8b2076e8891f 9a66d8d7-4ff7-4ef9-b5a2-5a326ca2a469 -ATTRIB_HIDE
Low battery notification
powercfg -attributes e73a048d-bf27-4f12-9731-8b2076e8891f bcded951-187b-4d05-bccc-f7e51960c258 -ATTRIB_HIDE
Low battery action
powercfg -attributes e73a048d-bf27-4f12-9731-8b2076e8891f d8742dcb-3e6a-4b3c-b3fe-374623cdcf06 -ATTRIB_HIDE
Reserve battery level
powercfg -attributes e73a048d-bf27-4f12-9731-8b2076e8891f f3c5027d-cd16-4930-aa6b-90db844a8f00 -ATTRIB_HIDE

---

*Note: When searching for the GUID's in the registry (taking the GUID from the /Qh command), one will also find collections of these GUID's in the registry. This is a place where additional entries can be found beyond the scope of the Powercfg /Qh output, for extra power and processor options in Windows 10. Review and edit with caution.*

---

Further Research and Understanding:

• Microsoft - More Information on PowerCfg Command Line Options
• Ten Forums - Export and Import Power Plan in Windows 10
• Ten Forums - View All Power Plan Settings in a Text File
• Hexadecimal to Decimal Converter for Reviewing Tex Files
• Notebook Review - How to Show Hidden Settings in Power Options
• Copy Leaks - High Power Plan Comparison /Q and /Qh
• Bitsum - Balanced Power Plan GUID's
• Microsoft - Example of Documentation on Some Processor GUID's
• Microsoft Forum - Can Power Options be Copied to a File?

Answer 2

There is a more recent method posted here: Answer by Kiaren Collis at Microsoft Community

$sting77 = "HKLM\SYSTEM\CurrentControlSet\Control\Power\PowerSettings"
$querylist =  reg query $sting77
foreach ($regfolder in $querylist){
$querylist2 = reg query $regfolder
    foreach($2ndfolder in $querylist2){
    $active2 = $2ndfolder -replace "HKEY_LOCAL_MACHINE" , "HKLM:"
    Get-ItemProperty -Path $active2
    Set-ItemProperty -Path "$active2" -Name "Attributes" -Value '2'
    }
    $active = $regfolder -replace "HKEY_LOCAL_MACHINE" , "HKLM:"
    Get-ItemProperty -Path $active
    Set-ItemProperty -Path "$active" -Name "Attributes" -Value '2'
}

Basically, this script iterates over HKLM\SYSTEM\CurrentControlSet\Control\Power\PowerSettings and changes all Attributes entries for all subfolders (will turn out to be subfolders in power settings) and all next-level subfolders (will turn out to be items in power settings).

Put this script to a Power Shell script and run it.

---

Additional information: I can never run the script in the community wiki answer successfully -- see my comments there, and once I run all the "powercfg" commands to "unhide" the settings, my power plan advanced settings breaks, and it says something like "Your Power plan information isn't available." and nothing shows up in the dialog.

There are posts providing various solutions to this problem, including resetting or duplicating the original power scheme using powercfg, and adding CsEnabled in the registry. I tried both, and neither worked for me. Since Windows 10 version 2004, according to the same post I cited, CsEnabled entry is removed from registry.

---

In case you wonder why I care: All I need is to disable network when I put the computer to "sleep" or the S0 fake sleep -- use the entry "Networking connectivity in Standby" (screenshot below)

This is working as of Windows 10 version 21H2.

Answer 3

You can try GUI tool to see/edit all hidden Power Settings PowerSettingsExplorer

Answer 4

this powershell script is the same as been proposed previously, but errors has been fixed. Worked for me latest win10, now every power settings option is visible and available to be edited from windows UI:

save it as file named powercfg_unlock_settings.ps1, paste this code inside and run it as administrator. If you can not run it, execute the first line command first: Set-ExecutionPolicy -ExecutionPolicy RemoteSigned

# Set-ExecutionPolicy -ExecutionPolicy RemoteSigned
$registry_path = "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power\PowerSettings"
$powercfg_settings = reg query $registry_path
$powercfg_settings_filtered = @($powercfg_settings) -match '.+' # no empty strings
foreach ($powercfg_setting in $powercfg_settings_filtered) {
    $powercfg_setting_formatted = $powercfg_setting -replace "HKEY_LOCAL_MACHINE" , "HKLM:"
    # Get-ItemProperty -Path $powercfg_setting_formatted
    Set-ItemProperty -Path $powercfg_setting_formatted -Name "Attributes" -Value "2" # 2=visible
$powercfg_setting_children = reg query $powercfg_setting
$escaped_regex = [regex]::Escape($powercfg_setting)
$powercfg_setting_children_filtered = @($powercfg_setting_children) -match "$escaped_regex.+" # only children
foreach($child_setting in $powercfg_setting_children_filtered) {
    $child_setting_formatted = $child_setting -replace "HKEY_LOCAL_MACHINE" , "HKLM:"
    # Get-ItemProperty -Path $child_setting_formatted
    Set-ItemProperty -Path $child_setting_formatted -Name "Attributes" -Value "2" # 2=visible
}

}

Answer 5

Yvon, If you're interested only in the "Networking connectivity in Standby" entry, here's a quick way to do this: Open CMD as admin and run the following commands:

:: To unhide/show the setting in the Advanced Power Options GUI:
reg add "HKLM\SYSTEM\CurrentControlSet\Control\Power\PowerSettings\f15576e8-98b7-4186-b944-eafa664402d9" /f /v Attributes /t REG_DWORD /d 2
:: To modify the setting via registry:
reg add "HKLM\SYSTEM\CurrentControlSet\Control\Power\User\PowerSchemes\381b4222-f694-41f0-9685-ff5bb260df2e\f15576e8-98b7-4186-b944-eafa664402d9" /f /v ACSettingIndex /t REG_DWORD /d 0
:: 0 = Disable
:: 1 = Enable
:: 2 = Managed by Windows
