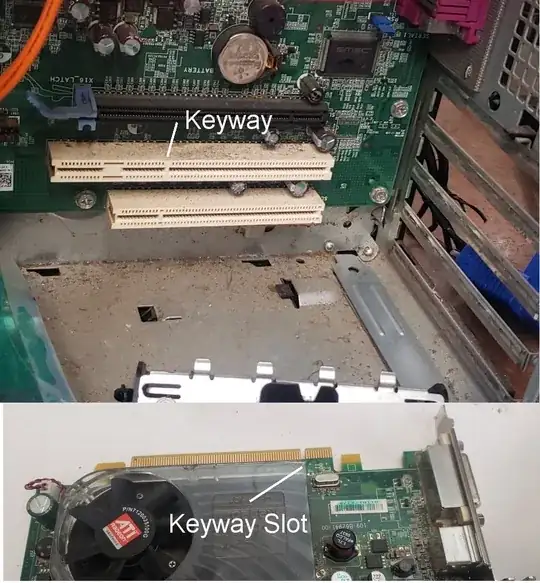

I am trying to install a new VGA video card to my computer (a Dell Optiplex 380 mini-tower). This computer has a PCIe slot for add-in cards. I purchased a PCIe VGA video card on eBay but it doesn't fit the PCIe slot (the keyway and keyway slots don't match up - see picture below).
I"m confused. Can anyone tell me what I'm missing?
I looked at several other cards on eBay and they all look like the lower image below (won't fit).

enter image description here

John Wilson
  • 161

1 Answers1

4

The black slot is PCIe, the white slots are PCI (no "e").

You cannot fit a PCIe graphics card in the white slots.

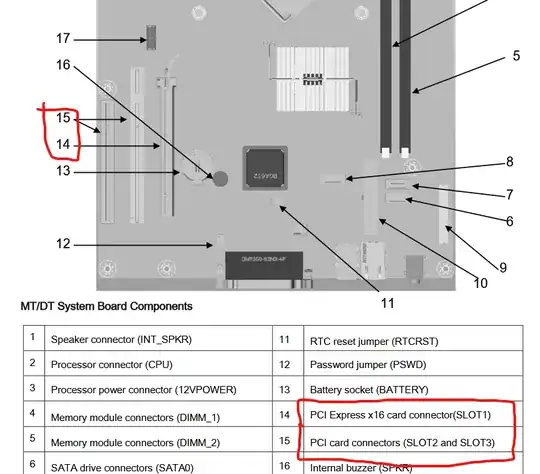

To confirm, from the Dell Optiplex Technical Manual

enter image description here

Your slot closest to the battery is the PCIe slot, the other two are PCI only.
