On a remote private network there are two servers -- a file server and a database server (these are both Win machines, in case it matters).

The file server has its own fairly robust authentication mechanisms, and allows me to connect directly from a remote location.

The database server uses a simple username and password, so to prevent unauthorized access, it's locked down to the local network -- external traffic is blocked.

To access the database server, I'm using the OpenVPN client on Windows to connect to a VPN server on the private network.

By default, OpenVPN routes all network packets destined for the remote network on which the VPN server resides, through the VPN. Unfortunately, accessing the file server through the VPN is extremely slow!

Question:

How can I configure the OpenVPN client to ONLY route traffic through the VPN that is destined for a single, specific IP address -- namely the database server??

dotvotdot
  • 600
Brian Lacy
  • 3,391

5 Answers5

131

The correct configuration for OpenVpn is:

route-nopull
route 192.168.0.0 255.255.255.0

These entries belong in your .ovpn file and will direct all 192.168.0.* subnet traffic through the VPN.

For one IP only (192.168.0.1):

route-nopull
route 192.168.0.1 255.255.255.255

BTW: route-nopull means "don't pull routes from the server"

ndemou
  • 1,280
  • 1
  • 13
  • 21
Thomas
  • 1,411
32

Goals

  • Use the plain internet connection for all internet traffic by default, even when the VPN is connected.
  • Route traffic to one specific IP address through the VPN.

Steps

  1. Press Win + R and execute ncpa.cpl.

  2. Right-click the VPN connection and go to Properties → Networking.

  3. Select Internet Protocol Version 4 and go to Properties → Advanced....

  4. Uncheck Use default gateway on remote network and click OK.

  5. (optional) Repeat the previous steps for Internet Protocol Version 6.

  6. (Re)connect to your VPN.

  7. Open a command prompt and execute route print -4.

  8. Spot the VPN's interface in the Interface list and its gateway in the Active Routes.

    On my machine, I have:

    Interface List
 32...........................Super Free VPN

[...]

Active Routes:
Network Destination        Netmask          Gateway       Interface  Metric
          0.0.0.0          0.0.0.0         On-link        10.6.6.127     31
         10.0.0.0        255.0.0.0        10.88.1.1      10.88.1.102     31

    Here, the VPN's gateway is 10.88.1.1, since its the gateway for the 10.xxx.xxx.xxx block.

  9. Add a persistant route that will be appended to the active routes whenever there's a connection to the VPN:

    route -p add 23.22.135.169 10.88.1.1 if 32

    In this example, 23.22.135.169 is the IP of whatismyip.org, 10.88.1.1 is the gateway's IP and 32 the number of the interface.

  10. (optional) Repeat the previous steps for route print -6.

  11. Test the setup.

    If everything worked out, whatismyip.org and www.whatismyip.cx will display different IPs now.

Dennis
  • 50,701
26

To your OpenVPN client config, add a line like:

route The.IP.To.Go 255.255.255.255

(Where The.IP.To.Go is the IP you wish to route through the VPN)

This instructs OpenVPN to create the entry in your OS's routing table.

Alternatively, the OpenVPN server could be made to "push" this routing configuration down to clients, by adding to the server config:

push "route The.IP.To.Go 255.255.255.255"

EDIT: One thing I missed addressing--the default forwarding of all traffic... It could either be disabled on the server, or clients can elect to ignore "pushed" directives (so our second option "pushing" the route would not work) via:

route-nopull
Community
  • 1
Adam
  • 261
  • 3
  • 3
12

In response to the comments asking for an easy linux / networkmanager friendly solution to customizing what gets routed over OpenVPN, here is a GUI friendly way to set it up. This answer is, as far as I can tell, just the GUI version of Thomas's answer.

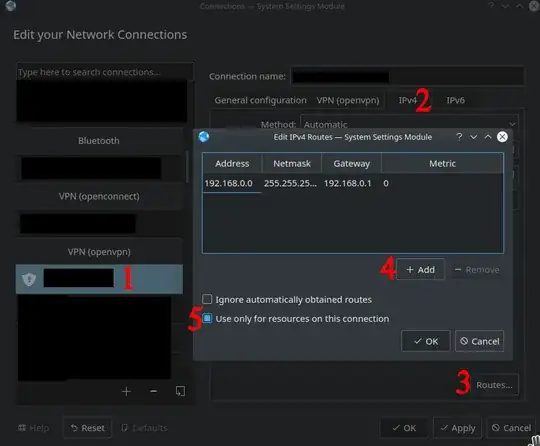

Screenshot of network manager showing where to click

Step 1: select your VPN configuration

Step 2: go over to the relevant tab (either IPv4 or IPv6)

Step 3: Click the "Routes..." button in the bottom right

Step 4: Add your desired route (in this case it is redirecting all traffic from 192.168.0.* through the VPN

Step 5: check the "use only for resources on this connection" checkbox so that connecting to the VPN doesn't change your default gateway settings to route all traffic through the VPN.

DeveloperACE
  • 257
-1
iptables -A PREROUTING -t mangle -i <LAN_interface> \
-d <remote_network>/<remote_netmask> -j ROUTE --gw <openvpn_host_ip>
